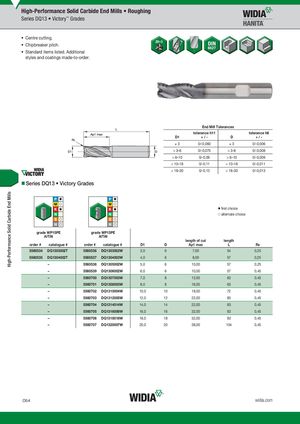

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series DQ13 • Victory™ Grades • Centre cutting. • Chipbreaker pitch. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h11 tolerance h6 D1 +/- D +/- )3 0/-0,060 )3 0/-0,006 > 3–6 0/-0,075 > 3–6 0/-0,008 > 6–10 0/-0,09 > 6–10 0/-0,009 > 10–18 0/-0,11 > 10–18 0/-0,011 > 18–30 0/-0,13 > 18–30 0/-0,013 „Series DQ13 • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE graWdePW15PP1E5PE AlTiN AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L R¡ 5560534 DQ1303002T 5560536 DQ1303002W 3,0 6 7,00 54 0,25 5560535 DQ1304002T 5560537 DQ1304002W 4,0 6 8,00 57 0,25 – 5560538 DQ1305002W 5,0 6 10,00 57 0,25 – 5560539 DQ1306002W 6,0 6 10,00 57 0,45 – 5560700 DQ1307003W 7,0 8 13,00 63 0,45 – 5560701 DQ1308003W 8,0 8 16,00 63 0,45 – 5560702 DQ1310004W 10,0 10 19,00 72 0,45 – 5560703 DQ1312005W 12,0 12 22,00 83 0,45 – 5560704 DQ1314014W 14,0 14 22,00 83 0,45 – 5560705 DQ1316006W 16,0 16 32,00 92 0,45 – 5560706 DQ1318018W 18,0 18 32,00 92 0,45 – 5560707 DQ1320007W 20,0 20 38,00 104 0,45 O54 widia.com
