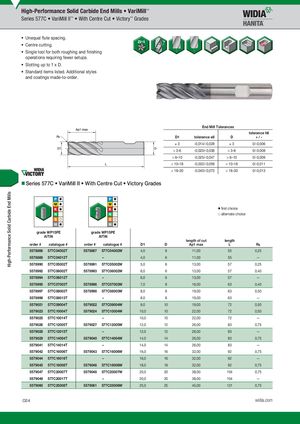

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • VariMill™ Series 577C • VariMill II™ • With Centre Cut • Victory™ Grades • Unequal flute spacing. • Centre cutting. • Single tool for both roughing and finishing operations requiring fewer setups. • Slotting up to 1 x D. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3-6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 577C • VariMill II • With Centre Cut • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE graWdePW15PP1E5PE AlTiN AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L R¡ 5578866 577C04002T 5578867 577C04002W 4,0 6 11,00 55 0,25 5578868 577C04012T – 4,0 6 11,00 55 — 5578990 577C05002T 5578991 577C05002W 5,0 6 13,00 57 0,25 5578992 577C06002T 5578993 577C06002W 6,0 6 13,00 57 0,40 5578994 577C06012T – 6,0 6 13,00 57 — 5578995 577C07003T 5578996 577C07003W 7,0 8 16,00 63 0,40 5578997 577C08003T 5578998 577C08003W 8,0 8 19,00 63 0,50 5578999 577C08013T – 8,0 8 19,00 63 — 5579021 577C09004T 5579022 577C09004W 9,0 10 19,00 72 0,50 5579023 577C10004T 5579024 577C10004W 10,0 10 22,00 72 0,50 5579025 577C10014T – 10,0 10 22,00 72 — 5579026 577C12005T 5579027 577C12005W 12,0 12 26,00 83 0,75 5579028 577C12015T – 12,0 12 26,00 83 — 5579029 577C14004T 5579040 577C14004W 14,0 14 26,00 83 0,75 5579041 577C14014T – 14,0 14 26,00 83 — 5579042 577C16006T 5579043 577C16006W 16,0 16 32,00 92 0,75 5579044 577C16016T – 16,0 16 32,00 92 — 5579045 577C18008T 5579046 577C18008W 18,0 18 32,00 92 0,75 5579047 577C20007T 5579048 577C20007W 20,0 20 38,00 104 0,75 5579049 577C20017T – 20,0 20 38,00 104 — 5579060 577C25008T 5579061 577C25008W 25,0 25 45,00 121 0,75 O24 widia.com
