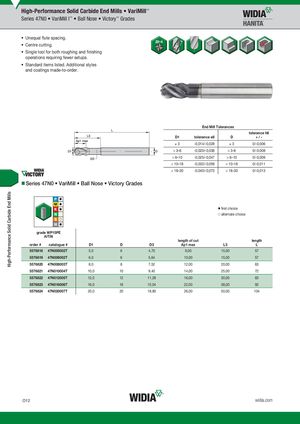

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • VariMill™ Series 47N0 • VariMill I™ • Ball Nose • Victory™ Grades • Unequal flute spacing. • Centre cutting. • Single tool for both roughing and finishing operations requiring fewer setups. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 47N0 • VariMill • Ball Nose • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L 5576818 47N005002T 5,0 6 4,70 9,00 15,00 57 5576819 47N006002T 6,0 6 5,64 10,00 15,00 57 5576820 47N008003T 8,0 8 7,52 12,00 20,00 63 5576821 47N010004T 10,0 10 9,40 14,00 25,00 72 5576822 47N012005T 12,0 12 11,28 16,00 30,00 83 5576823 47N016006T 16,0 16 15,04 22,00 38,00 92 5576824 47N020007T 20,0 20 18,80 26,00 50,00 104 O12 widia.com
