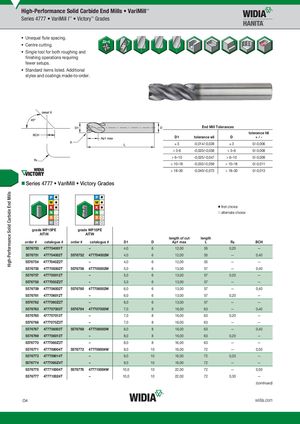

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • VariMill™ Series 4777 • VariMill I™ • Victory™ Grades • Unequal flute spacing. • Centre cutting. • Single tool for both roughing and finishing operations requiring fewer setups. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/-0,006 > 3-6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 „Series 4777 • VariMill • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE graWdePW15PP1E5PE AlTiN AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L R¡ BCH 5576753 477704001T – 4,0 6 12,00 55 0,20 — 5576751 477704002T 5576752 477704002W 4,0 6 12,00 55 — 0,40 5576754 4777040Z2T – 4,0 6 12,00 55 — — 5576755 477705002T 5576756 477705002W 5,0 6 13,00 57 — 0,40 5576757 477705012T – 5,0 6 13,00 57 0,20 — 5576758 4777050Z2T – 5,0 6 13,00 57 — — 5576759 477706002T 5576760 477706002W 6,0 6 13,00 57 — 0,40 5576761 477706012T – 6,0 6 13,00 57 0,20 — 5576762 4777060Z2T – 6,0 6 13,00 57 — — 5576763 477707003T 5576764 477707003W 7,0 8 16,00 63 — 0,40 5576765 477707013T – 7,0 8 16,00 63 0,20 — 5576766 4777070Z3T – 7,0 8 16,00 63 — — 5576767 477708003T 5576768 477708003W 8,0 8 16,00 63 — 0,40 5576769 477708013T – 8,0 8 16,00 63 0,20 — 5576770 4777080Z3T – 8,0 8 16,00 63 — — 5576771 477709004T 5576772 477709004W 9,0 10 19,00 72 — 0,50 5576773 477709014T – 9,0 10 19,00 72 0,20 — 5576774 4777090Z4T – 9,0 10 19,00 72 — — 5576775 477710004T 5576776 477710004W 10,0 10 22,00 72 — 0,50 5576777 477710024T – 10,0 10 22,00 72 0,30 — (continued) O4 widia.com
