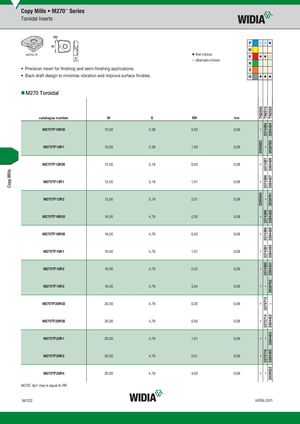

Copy Mills TN2505–2095682––2095640–––––––––– TN25103374385–33743873374388–3374389337439033743913374392–33757133375714–3375716– TN25253384424263876033844263384427263876133844283384429338443033844312638762–3384453338445433844552639023 Copy Mills • M270™ Series Toroidal Inserts P ࠗ ࠗ ⅷ M M270-TF ⅷ first choice K ⅷ ⅷ ࠗ ࠗ alternate choice N • Precision insert for finishing and semi-finishing applications. S • Back draft design to minimise vibration and improve surface finishes. H ⅷ ⅷ ⅷ „M270 Toroidal catalogue number W S RR hm M270TF10R05 10,00 2,38 0,50 0,08 M270TF10R1 10,00 2,38 1,00 0,08 M270TF12R05 12,00 3,18 0,50 0,08 M270TF12R1 12,00 3,18 1,01 0,08 M270TF12R2 12,00 3,18 2,01 0,08 M270TF16R03 16,00 4,76 0,30 0,08 M270TF16R05 16,00 4,76 0,50 0,08 M270TF16R1 16,00 4,76 1,01 0,08 M270TF16R2 16,00 4,76 2,02 0,08 M270TF16R3 16,00 4,76 3,04 0,08 M270TF20R03 20,00 4,76 0,30 0,08 M270TF20R05 20,00 4,76 0,50 0,08 M270TF20R1 20,00 4,76 1,01 0,08 M270TF20R2 20,00 4,76 2,01 0,08 M270TF20R4 20,00 4,76 4,02 0,08 NOTE: Ap1 max is equal to RR. M122 widia.com
