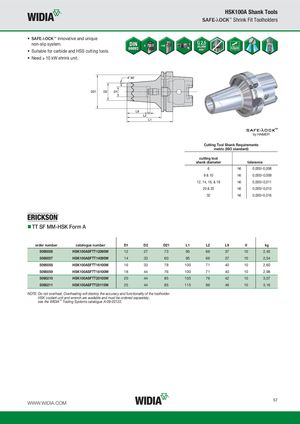

HSK100A Shank Tools SAFE-hOCK™ Shrink Fit Toolholders • SAFE-hOCK™ innovative and unique non-slip system. • Suitable for carbide and HSS cutting tools. • Need * 10 kW shrink unit. Cutting Tool Shank Requirements metric (ISO standard) cutting tool shank diameter tolerance 6 h6 0,000/-0,008 8 & 10 h6 0,000/-0,009 12, 14, 16, & 18 h6 0,000/-0,011 20 & 25 h6 0,000/-0,013 32 h6 0,000/-0,016 „TT SF MM-HSK Form A order number catalogue number D1 D2 D21 L1 L2 L9 V kg 5090056 HSK100ASFTT12095M 12 27 73 95 66 37 10 2,45 5090057 HSK100ASFTT14095M 14 33 60 95 66 37 10 2,54 5090058 HSK100ASFTT16100M 16 33 78 100 71 40 10 2,60 5090059 HSK100ASFTT18100M 18 44 76 100 71 40 10 2,98 5090210 HSK100ASFTT20105M 20 44 85 105 76 42 10 3,07 5090211 HSK100ASFTT25115M 25 44 85 115 86 48 10 3,16 NOTE: Do not overheat. Overheating will destroy the accuracy and functionality of the toolholder. HSK coolant unit and wrench are available and must be ordered separately; see the WIDIA™ Tooling Systems catalogue A-09-02122. WWW.WIDIA.COM 57
