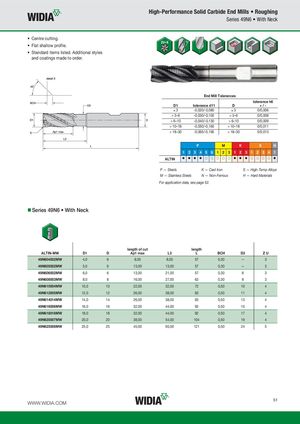

High-Performance Solid Carbide End Mills • Roughing Series 49N6 • With Neck • Centre cutting. • Flat shallow profile. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/0,006 > 3–6 -0,030/-0,105 > 3–6 0/0,008 > 6–10 -0,040/-0,130 > 6–10 0/0,009 > 10–18 -0,050/-0,160 > 10–18 0/0,011 > 18–30 -0,065/-0,195 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 ALTIN ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ࠗ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For application data, see page 52. „Series 49N6 • With Neck ALTIN-MW length of cut length ALTIN-MW D1 D Ap1 max L3 L BCH D3 ZU 49N604002MW 4,0 6 8,00 8,00 57 0,30 — 3 49N605002MW 5,0 6 13,00 13,00 57 0,30 — 3 49N606002MW 6,0 6 13,00 21,00 57 0,30 6 3 49N608003MW 8,0 8 16,00 27,00 63 0,30 8 3 49N610004MW 10,0 10 22,00 32,00 72 0,50 10 4 49N612005MW 12,0 12 26,00 38,00 83 0,50 11 4 49N614014MW 14,0 14 26,00 38,00 83 0,50 13 4 49N616006MW 16,0 16 32,00 44,00 92 0,50 15 4 49N618018MW 18,0 18 32,00 44,00 92 0,50 17 4 49N620007MW 20,0 20 38,00 54,00 104 0,50 19 4 49N625008MW 25,0 25 45,00 65,00 121 0,50 24 5 WWW.WIDIA.COM 51
