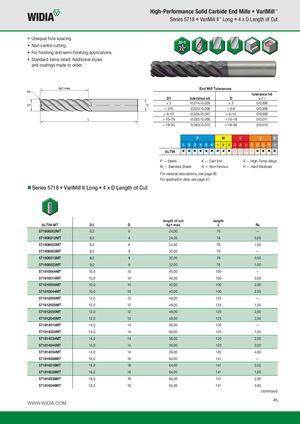

High-Performance Solid Carbide End Mills • VariMill™ Series 5718 • VariMill II™ Long • 4 x D Length of Cut • Unequal flute spacing. • Non-centre cutting. • For finishing and semi-finishing applications. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 ALTIN ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ࠗ ⅷ ⅷ ⅷ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For material descriptions, see page 85. For application data, see page 47. „Series 5718 • VariMill II Long • 4 x D Length of Cut AlTiN - MT length of cut length ALTIN-MT D1 D Ap1 max L R¡ 571806002MT 6,0 6 24,00 76 — 571806012MT 6,0 6 24,00 76 0,50 571806022MT 6,0 6 24,00 76 1,00 571808003MT 8,0 8 32,00 76 — 571808013MT 8,0 8 32,00 76 0,50 571808023MT 8,0 8 32,00 76 1,00 571810004MT 10,0 10 40,00 100 — 571810014MT 10,0 10 40,00 100 0,50 571810034MT 10,0 10 40,00 100 2,00 571810044MT 10,0 10 40,00 100 2,50 571812005MT 12,0 12 48,00 125 — 571812025MT 12,0 12 48,00 125 1,00 571812035MT 12,0 12 48,00 125 2,00 571812045MT 12,0 12 48,00 125 2,50 571814014MT 14,0 14 56,00 120 — 571814024MT 14,0 14 56,00 120 1,00 571814034MT 14,0 14 56,00 120 2,00 571814044MT 14,0 14 56,00 120 3,00 571814054MT 14,0 14 56,00 120 4,00 571816006MT 16,0 16 64,00 141 — 571816016MT 16,0 16 64,00 141 0,50 571816026MT 16,0 16 64,00 141 1,00 571816036MT 16,0 16 64,00 141 2,00 571816046MT 16,0 16 64,00 141 3,00 (continued) WWW.WIDIA.COM 45
