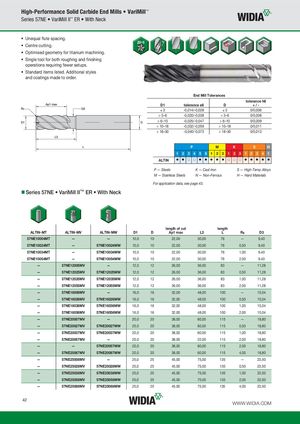

High-Performance Solid Carbide End Mills • VariMill™ Series 57NE • VariMill II™ ER • With Neck • Unequal flute spacing. • Centre cutting. • Optimised geometry for titanium machining. • Single tool for both roughing and finishing operations requiring fewer setups. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3–6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 ALTIN ⅷ ⅷ ࠗ ࠗ ⅷ ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ ⅷ ⅷ ⅷ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For application data, see page 43. „Series 57NE • VariMill II™ ER • With Neck AlTiN - MT ALTIN-MV AlTiN - MW length of cut length ALTIN-MT ALTIN-MV ALTIN-MW D1 D Ap1 max L3 L R¡ D3 57NE10004MT — — 10,0 10 22,00 30,00 76 — 9,40 57NE10024MT — 57NE10024MW 10,0 10 22,00 30,00 76 0,50 9,40 57NE10034MT — 57NE10034MW 10,0 10 22,00 30,00 76 1,00 9,40 57NE10054MT — 57NE10054MW 10,0 10 22,00 30,00 76 2,00 9,40 — 57NE12005MV — 12,0 12 26,00 36,00 83 — 11,28 — 57NE12025MV 57NE12025MW 12,0 12 26,00 36,00 83 0,50 11,28 — 57NE12035MV 57NE12035MW 12,0 12 26,00 36,00 83 1,00 11,28 — 57NE12055MV 57NE12055MW 12,0 12 26,00 36,00 83 2,00 11,28 — 57NE16006MV — 16,0 16 32,00 48,00 100 — 15,04 — 57NE16026MV 57NE16026MW 16,0 16 32,00 48,00 100 0,50 15,04 — 57NE16036MV 57NE16036MW 16,0 16 32,00 48,00 100 1,00 15,04 — 57NE16056MV 57NE16056MW 16,0 16 32,00 48,00 100 2,00 15,04 — 57NE20007MV — 20,0 20 38,00 60,00 115 — 18,80 — 57NE20027MV 57NE20027MW 20,0 20 38,00 60,00 115 0,50 18,80 — 57NE20037MV 57NE20037MW 20,0 20 38,00 60,00 115 1,00 18,80 — 57NE20057MV — 20,0 20 38,00 22,00 115 2,00 18,80 — — 57NE20057MW 20,0 20 38,00 60,00 115 2,00 18,80 — 57NE20087MV 57NE20087MW 20,0 20 38,00 60,00 115 4,00 18,80 — 57NE25008MV — 25,0 25 45,00 75,00 135 — 23,50 — 57NE25028MV 57NE25028MW 25,0 25 45,00 75,00 135 0,50 23,50 — 57NE25038MV 57NE25038MW 25,0 25 45,00 75,00 135 1,00 23,50 — 57NE25058MV 57NE25058MW 25,0 25 45,00 75,00 135 2,00 23,50 — 57NE25088MV 57NE25088MW 25,0 25 45,00 75,00 135 4,00 23,50 42 WWW.WIDIA.COM
