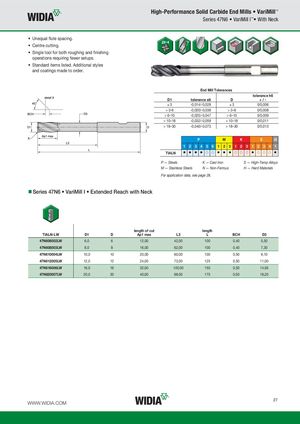

High-Performance Solid Carbide End Mills • VariMill™ Series 47N6 • VariMill I™• With Neck • Unequal flute spacing. • Centre cutting. • Single tool for both roughing and finishing operations requiring fewer setups. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3-6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 TIALN ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For application data, see page 28. „Series 47N6 • VariMill I • Extended Reach with Neck TiAlN - LW length of cut length TIALN-LW D1 D Ap1 max L3 L BCH D3 47N606002LW 6,0 6 12,00 42,00 100 0,40 5,50 47N608003LW 8,0 8 16,00 62,00 100 0,40 7,30 47N610004LW 10,0 10 20,00 60,00 100 0,50 9,10 47N612005LW 12,0 12 24,00 73,00 125 0,50 11,00 47N616006LW 16,0 16 32,00 100,00 150 0,50 14,56 47N620007LW 20,0 20 40,00 98,00 175 0,50 18,20 WWW.WIDIA.COM 27
