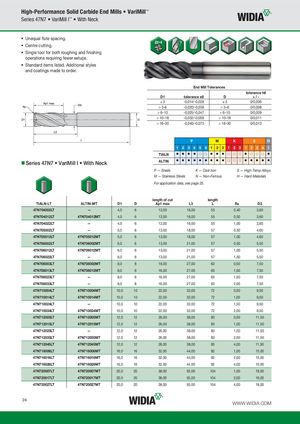

High-Performance Solid Carbide End Mills • VariMill™ Series 47N7 • VariMill I™ • With Neck • Unequal flute spacing. • Centre cutting. • Single tool for both roughing and finishing operations requiring fewer setups. • Standard items listed. Additional styles and coatings made to order. End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- )3 -0,014/-0,028 )3 0/0,006 > 3-6 -0,020/-0,038 > 3–6 0/0,008 > 6–10 -0,025/-0,047 > 6–10 0/0,009 > 10–18 -0,032/-0,059 > 10–18 0/0,011 > 18–30 -0,040/-0,073 > 18–30 0/0,013 P M K S H 1 2 3 4 5 6 1 2 3 1 2 3 1 2 3 4 1 TIALN ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ ࠗ ࠗ ࠗ ⅷ „Series 47N7 • VariMill I • With Neck ALTIN ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ⅷ ࠗ ࠗ ࠗ ⅷ ⅷ ⅷ ⅷ ⅷ P — Steels K — Cast Iron S — High-Temp Alloys M — Stainless Steels N — Non-Ferrous H — Hard Materials For application data, see page 25. TIALN-LT ALTIN-MT length of cut length TIALN-LT ALTIN-MT D1 D Ap1 max L3 L R¡ D3 47N704002LT — 4,0 6 12,00 16,00 55 0,40 3,60 47N704012LT 47N704012MT 4,0 6 12,00 16,00 55 0,50 3,60 47N704022LT — 4,0 6 12,00 16,00 55 1,00 3,60 47N705002LT — 5,0 6 13,00 18,00 57 0,50 4,60 47N705012LT 47N705012MT 5,0 6 13,00 18,00 57 1,00 4,60 47N706002LT 47N706002MT 6,0 6 13,00 21,00 57 0,50 5,50 47N706012LT 47N706012MT 6,0 6 13,00 21,00 57 1,00 5,50 47N706022LT — 6,0 6 13,00 21,00 57 1,50 5,50 47N708003LT 47N708003MT 8,0 8 16,00 27,00 63 0,50 7,50 47N708013LT 47N708013MT 8,0 8 16,00 27,00 63 1,00 7,50 47N708023LT — 8,0 8 16,00 27,00 63 1,50 7,50 47N708033LT — 8,0 8 16,00 27,00 63 2,00 7,50 47N710004LT 47N710004MT 10,0 10 22,00 32,00 72 0,50 9,50 47N710014LT 47N710014MT 10,0 10 22,00 32,00 72 1,00 9,50 47N710024LT — 10,0 10 22,00 32,00 72 1,50 9,50 47N710034LT 47N710034MT 10,0 10 22,00 32,00 72 2,00 9,50 47N712005LT 47N712005MT 12,0 12 26,00 38,00 83 0,50 11,50 47N712015LT 47N712015MT 12,0 12 26,00 38,00 83 1,00 11,50 47N712025LT — 12,0 12 26,00 38,00 83 1,50 11,50 47N712035LT 47N712035MT 12,0 12 26,00 38,00 83 2,00 11,50 47N712045LT 47N712045MT 12,0 12 26,00 38,00 83 4,00 11,50 47N716006LT 47N716006MT 16,0 16 32,00 44,00 92 1,00 15,00 47N716016LT 47N716016MT 16,0 16 32,00 44,00 92 2,00 15,00 47N716026LT 47N716026MT 16,0 16 32,00 44,00 92 4,00 15,00 47N720007LT 47N720007MT 20,0 20 38,00 55,00 104 1,00 19,00 47N720017LT 47N720017MT 20,0 20 38,00 55,00 104 2,00 19,00 47N720027LT 47N720027MT 20,0 20 38,00 55,00 104 4,00 19,00 24 WWW.WIDIA.COM
