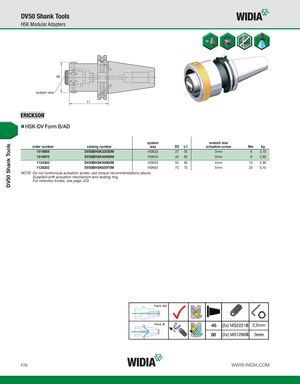

DV50 Shank Tools DV50 Shank Tools HSK Modular Adapters system size HSK-DV Form B/AD system wrench size order number catalog number size D2 L1 actuation screw Nm kg 1519669 DV50BHSK32055M HSK32 37 55 3mm 6 2,70 1519670 DV50BHSK40060M HSK40 45 60 3mm 8 2,80 1124343 DV50BHSK50065M HSK50 55 65 4mm 15 2,90 1126202 DV50BHSK63075M HSK63 70 75 5mm 20 3,10 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. F70 WWW.WIDIA.COM
