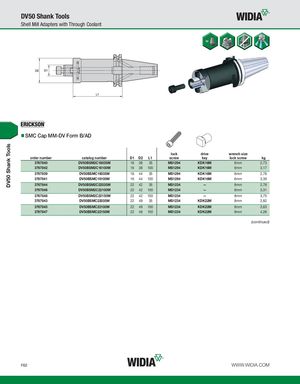

DV50 Shank Tools DV50 Shank Tools Shell Mill Adapters with Through Coolant SMC Cap MM-DV Form B/AD lock drive wrench size order number catalog number D1 D2 L1 screw key lock screw kg 3767840 DV50BSM2C16035M 16 38 35 MS1294 KDK16M 6mm 2,73 3767842 DV50BSM2C16100M 16 38 100 MS1294 KDK16M 6mm 3,17 3767839 DV50BSMC16035M 16 44 35 MS1294 KDK16M 6mm 2,76 3767841 DV50BSMC16100M 16 44 100 MS1294 KDK16M 6mm 3,39 3767844 DV50BSM2C22035M 22 42 35 MS1234 — 8mm 2,76 3767846 DV50BSM2C22100M 22 42 100 MS1234 — 8mm 3,31 3767848 DV50BSM2C22150M 22 42 150 MS1234 — 8mm 3,75 3767843 DV50BSMC22035M 22 49 35 MS1234 KDK22M 8mm 2,82 3767845 DV50BSMC22100M 22 49 100 MS1234 KDK22M 8mm 3,63 3767847 DV50BSMC22150M 22 49 150 MS1234 KDK22M 8mm 4,26 (continued) F62 WWW.WIDIA.COM
