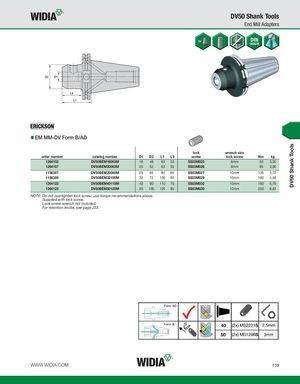

DV50 Shank Tools DV50 Shank Tools End Mill Adapters EM MM-DV Form B/AD lock wrench size order number catalog number D1 D2 L1 L9 screw lock screw Nm kg 1264102 DV50BEM16063M 16 48 63 53 SS03M025 6mm 50 3,00 1264107 DV50BEM20063M 20 52 63 55 SS03M026 8mm 95 3,06 1156387 DV50BEM25080M 25 65 80 60 SS03M027 10mm 135 3,72 1156388 DV50BEM32100M 32 72 100 65 SS03M029 10mm 160 4,48 1264122 DV50BEM40110M 40 90 110 75 SS03M032 10mm 160 5,76 1264125 DV50BEM50120M 50 100 120 85 SS03M030 12mm 250 6,63 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. WWW.WIDIA.COM F59
