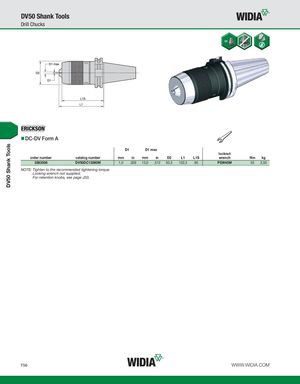

DV50 Shank Tools DV50 Shank Tools Drill Chucks DC-DV Form A D1 D1 max locknut order number catalog number mm in mm in D2 L1 L1S wrench Nm kg 3583506 DV50DC13090M 1,0 .039 13,0 .512 50,5 102,3 90 PSW45M 55 3,50 NOTE: Tighten to the recommended tightening torque. Locking wrench not supplied. For retention knobs, see page J33. F56 WWW.WIDIA.COM
