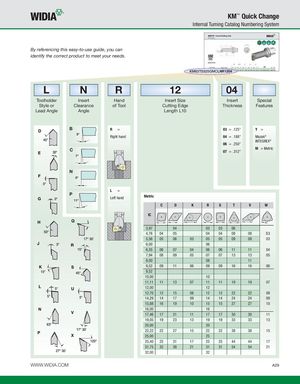

KM™ Quick Change Internal Turning Catalog Numbering System By referencing this easy-to-use guide, you can identify the correct product to meet your needs. KM63TSS25GMCLNR1204 L N R 12 04 Toolholder Insert Hand Insert Size Insert Special Style or Clearance of Tool Cutting Edge Thickness Features Lead Angle Angle Length L10 B R = 03 = .125" Y = Right hand 04 = .188" Mazak® INTEGREX® 06 = .250" C M = Metric07=.312" N L = P Left hand Metric C D K R S T V W IC 3,97 04 03 03 06 4,76 04 05 04 04 08 08 S3 5,56 05 06 03 05 05 09 09 03 6,00 06 6,35 06 07 04 06 06 11 11 04 7,94 08 09 05 07 07 13 13 05 8,00 08 11 9,52 09 11 06 09 09 16 16 06 9,52 10,00 10 11,11 11 13 07 11 11 19 19 07 12,00 12 12,70 12 15 08 12 12 22 22 08 14,29 14 17 09 14 14 24 24 09 15,88 16 19 10 15 15 27 27 10 16,00 16 17,46 17 21 11 17 17 30 30 11 19,05 19 23 13 19 19 33 33 13 20,00 20 22,22 22 27 15 22 22 38 38 15 25,00 25 25,40 25 31 17 25 25 44 44 17 31,75 32 38 21 31 31 54 54 21 32,00 32 WWW.WIDIA.COM A29
