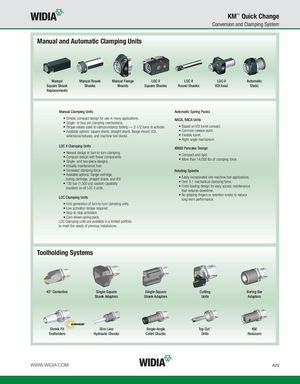

KM™ Quick Change Conversion and Clamping System Manual and Automatic Clamping Units Manual Manual Round Manual Flange LOC II LOC II LOC II Automatic Square Shank Shanks Mounts Square Shanks Round Shanks VDI Axial Static Replacements Manual Clamping Units Automatic Spring Packs • Simple, compact design for use in many applications. NACA, RACA Units • Single- or four-pin clamping mechanisms. • Torque values used to clamp/unclamp tooling — 2-1/2 turns to activate. • Based on VDI turret concept. • Available options: square shank, straight shank, flange mount, VDI, • Common release point. extensions/reduces, and machine tool blocks. • Flexible turret. • Right-angle mechanism. LOC II Clamping Units KM80 Pancake Design • Newest design in turn-to-turn clamping.• Compact design with fewer components.• Single- and two-piece designs. • Compact and rigid.• More than 14,000 lbs of clamping force. • Virtually maintenance free. • Increased clamping force. Rotating Spindle • Available options: flange cartridge,boring cartridge, straight shank, and VDI.• 100 bar (1,500 psi) coolant capabilitystandard on all LOC II units.• Easily incorporated into machine tool applications.• Over 5:1 mechanical clamping force.• Front-loading design for easy access maintenancethat reduces downtime. LOC Clamping Units • No gripping fingers or retention knobs to reducelong-term performance. • First generation of turn-to-turn clamping units. • Low activation torque required. • Stop-to-stop activation. • Cam-driven spring pack. LOC Clamping units are available in a limited portfolio to meet the needs of previous installations. Toolholding Systems 45° Centerline Single-Square Single-Square Cutting Boring Bar Shank Adapters Shank Adapters Units Adapters ® Shrink Fit Slim Line Single-Angle Top Cut™ KM Toolholders Hydraulic Chucks Collet Chucks Drills Reducers WWW.WIDIA.COM A23
