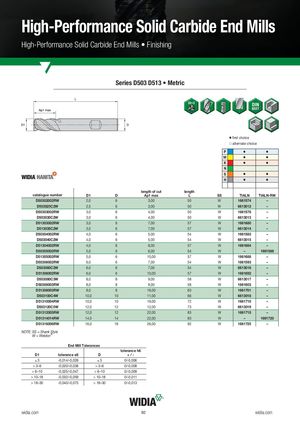

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Finishing Series D503 D513 • Metric v first choice j alternate choice P v v M v v K v v N S v v H v v length of cut length catalogue number D1 D Ap1 max L SS TIALN TIALN-RW D50302002RW 2,0 6 3,00 50 W 1661574 – D503025C2W 2,5 6 3,00 50 W 6613012 – D50303002RW 3,0 6 4,00 50 W 1661578 – D503030C2W 3,0 6 4,00 50 W 6613013 – D51303002RW 3,0 6 7,00 57 W 1661680 – D513035C2W 3,5 6 7,00 57 W 6613014 – D50304002RW 4,0 6 5,00 54 W 1661583 – D503040C2W 4,0 6 5,00 54 W 6613015 – D51304002RW 4,0 6 8,00 57 W 1661684 – D50305002RW 5,0 6 6,00 54 W – 1661588 D51305002RW 5,0 6 10,00 57 W 1661688 – D50306002RW 6,0 6 7,00 54 W 1661593 – D503060C2W 6,0 6 7,00 54 W 6613016 – D51306002RW 6,0 6 10,00 57 W 1661692 – D503080C3W 8,0 8 9,00 58 W 6613017 – D50308003RW 8,0 8 9,00 58 W 1661603 – D51308003RW 8,0 8 16,00 63 W 1661701 – D503100C4W 10,0 10 11,00 66 W 6613018 – D51310004RW 10,0 10 19,00 72 W 1661710 – D503120C5W 12,0 12 12,00 73 W 6613019 – D51312005RW 12,0 12 22,00 83 W 1661715 – D51314014RW 14,0 14 22,00 83 W – 1661720 D51316006RW 16,0 16 26,00 92 W 1661725 – NOTE: S S = Shank Style W = Weldon® End Mill Tolerances tolerance h6 D1 tolerance e8 D +/- ≤3 -0,014/-0,028 ≤3 0/-0,006 > 3–6 -0,020/-0,038 > 3–6 0/-0,008 > 6–10 -0,025/-0,047 > 6–10 0/-0,009 > 10–18 -0,032/-0,059 > 10–18 0/-0,011 > 18–30 -0,040/-0,073 > 18–30 0/-0,013 widia.com 92 widia.com
