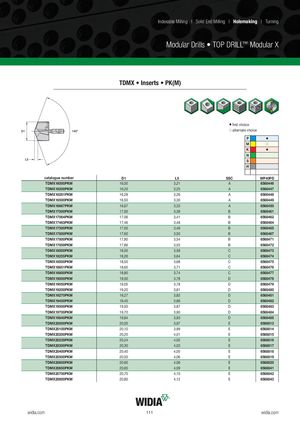

Indexable Milling I Solid End Milling I Holemaking I Turning Modular Drills • TOP DRILL™ Modular X TDMX • Inserts • PK(M) v first choice j alternate choice P v M j K v N S H catalogue number D1 L5 SSC WP40PD TDMX16000PKM 16,00 3,21 A 6568446 TDMX16200PKM 16,20 3,25 A 6568447 TDMX16281PKM 16,28 3,26 A 6568448 TDMX16500PKM 16,50 3,30 A 6568449 TDMX16667PKM 16,67 3,33 A 6568450 TDMX17000PKM 17,00 3,39 B 6568461 TDMX17064PKM 17,06 3,41 B 6568462 TDMX17463PKM 17,46 3,48 B 6568464 TDMX17500PKM 17,50 3,49 B 6568465 TDMX17600PKM 17,60 3,50 B 6568467 TDMX17800PKM 17,80 3,54 B 6568471 TDMX17859PKM 17,86 3,55 B 6568472 TDMX18000PKM 18,00 3,58 C 6568473 TDMX18255PKM 18,26 3,64 C 6568474 TDMX18500PKM 18,50 3,68 C 6568475 TDMX18651PKM 18,65 3,71 C 6568476 TDMX18800PKM 18,80 3,74 C 6568477 TDMX19000PKM 19,00 3,78 D 6568478 TDMX19050PKM 19,05 3,78 D 6568479 TDMX19200PKM 19,20 3,81 D 6568480 TDMX19270PKM 19,27 3,82 D 6568481 TDMX19450PKM 19,45 3,86 D 6568482 TDMX19500PKM 19,50 3,87 D 6568483 TDMX19700PKM 19,70 3,90 D 6568484 TDMX19840PKM 19,84 3,93 D 6568485 TDMX20000PKM 20,00 3,97 E 6568813 TDMX20100PKM 20,10 3,99 E 6568814 TDMX20200PKM 20,20 4,01 E 6568815 TDMX20239PKM 20,24 4,02 E 6568816 TDMX20300PKM 20,30 4,03 E 6568817 TDMX20400PKM 20,40 4,05 E 6568818 TDMX20500PKM 20,50 4,06 E 6568819 TDMX20600PKM 20,60 4,08 E 6568820 TDMX20650PKM 20,65 4,09 E 6568841 TDMX20700PKM 20,70 4,10 E 6568842 TDMX20800PKM 20,80 4,12 E 6568843 widia.com 111 widia.com
