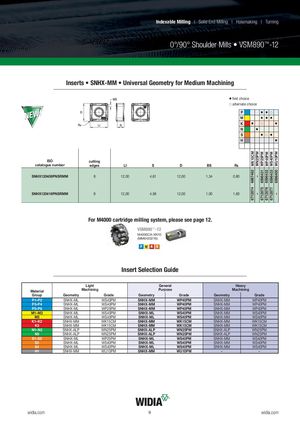

WK15CM66674626712874 WN25PM–– WP25PM65964316712875 WP40PM65964326712876 WS40PM65964336712877 WU10PM6596400– Indexable Milling I Solid End Milling I Holemaking I Turning 0°/90° Shoulder Mills • VSM890™-12 Inserts • SNHX-MM • Universal Geometry for Medium Machining v first choice j alternate choice NEW! P v v jMvvv K v j v N v S v j v H v ISO cutting catalogue number edges LI S D BS Re SNHX120408PNSRMM 8 12,00 4,61 12,00 1,34 0,80 SNHX120416PNSRMM 8 12,00 4,58 12,00 1,00 1,60 For M4000 cartridge milling system, please see page 12. VSM890™-12 M4000CA-XN10 (MM6433216) P M K S Insert Selection Guide Light General Heavy Material Machining Purpose Machining Group Geometry Grade Geometry Grade Geometry Grade P1–P2 SNHX-ML WS40PM SNHX-MM WP40PM SNHX-MM WP40PM P3–P4 SNHX-ML WS40PM SNHX-MM WP40PM SNHX-MM WP40PM P5–P6 SNHX-ML WP25PM SNHX-MM WP40PM SNHX-MM WP40PM M1–M2 SNHX-ML WS40PM SNHX-ML WS40PM SNHX-MM WS40PM M3 SNHX-ML WS40PM SNHX-ML WS40PM SNHX-MM WS40PM K1–K2 SNHX-MM WK15CM SNHX-MM WK15CM SNHX-MM WK15CM K3 SNHX-MM WK15CM SNHX-MM WK15CM SNHX-MM WK15CM N1–N2 SNHX-ALP WN25PM SNHX-ALP WN25PM SNHX-ALP WN25PM N3 SNHX-ALP WN25PM SNHX-ALP WN25PM SNHX-ALP WN25PM S1–S2 SNHX-ML WP25PM SNHX-ML WS40PM SNHX-MM WS40PM S3 SNHX-ML WS40PM SNHX-ML WS40PM SNHX-MM WS40PM S4 SNHX-ML WS40PM SNHX-ML WS40PM SNHX-MM WS40PM H1 SNHX-MM WU10PM SNHX-MM WU10PM – – widia.com 9 widia.com
