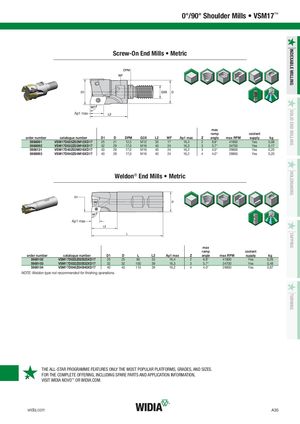

TURNINGTAPPINGHOLEMAKINGSOLID END MILLINGINDEXABLE MILLING 0°/90° Shoulder Mills • VSM17™ Screw-On End Mills • Metric Ap1 max max ramp coolant order number catalogue number D1 D DPM G3X L2 WF Ap1 max Z angle max RPM supply kg 5988091 VSM17D025Z02M12XD17 25 21 12,5 M12 35 17 16,4 2 8.8° 41800 Yes 0,08 5988092 VSM17D032Z03M16XD17 32 29 17,0 M16 40 24 16,3 3 5.7° 34700 Yes 0,17 5988131 VSM17D40Z03M016XD17 40 29 17,0 M16 40 24 16,2 3 4.0° 29800 Yes 0,20 5988093 VSM17D040Z04M16XD17 40 29 17,0 M16 40 24 16,2 4 4.0° 29800 Yes 0,20 Weldon® End Mills • Metric Ap1 max max ramp coolant order number catalogue number D1 D L L2 Ap1 max Z angle max RPM supply kg 5988102 VSM17D025Z02B25XD17 25 25 90 33 16,4 2 8.8° 41800 Yes 0,26 5988103 VSM17D032Z03B32XD17 32 32 100 39 16,3 3 5.7° 34700 Yes 0,48 5988104 VSM17D040Z04B40XD17 40 40 110 39 16,2 4 4.0° 29800 Yes 0,87 NOTE: Weldon type not recommended for finishing operations. THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM. widia.com A35
