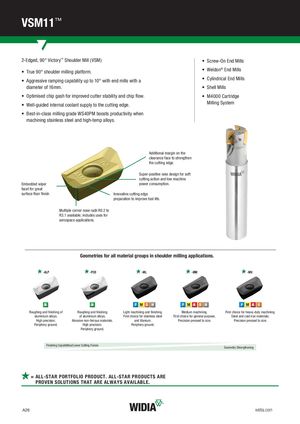

VSM11™ 2-Edged, 90° Victory™ Shoulder Mill (VSM) • Screw-On End Mills  • True 90° shoulder milling platform.  • Weldon® End Mills  • Aggressive ramping capability up to 10° with end mills with a • Cylindrical End Mills  diameter of 16mm.  • Shell Mills  • Optimised chip gash for improved cutter stability and chip flow.  • M4000 Cartridge • Well-guided internal coolant supply to the cutting edge.  Milling System  • Best-in-class milling grade WS40PM boosts productivity when machining stainless steel and high-temp alloys.  Additional margin on the clearance face to strengthen the cutting edge. Super-positive rake design for soft cutting action and low machine Embedded wiper power consumption. facet for great surface floor finish. Innovative cutting edge preparation to improve tool life. Multiple corner nose radii R0.2 to R3.1 available; includes uses for aerospace applications. Geometries for all material groups in shoulder milling applications. -ALP -PCD -ML -MM -MH N N P M S H P M K S H P M K S Roughing and finishing of Roughing and finishing Light machining and finishing. Medium machining. First choice for heavy-duty machining. aluminium alloys. of aluminium alloys. First choice for stainless steel First choice for general purpose. Steel and cast iron materials. High precision. Abrasive non-ferrous materials. and titanium. Precision pressed to size. Precision pressed to size. Periphery ground. High precision. Periphery ground. Periphery ground. Finishing Capabilities/Lower Cutting Forces Geometry Strengthening = ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE. A26 widia.com
