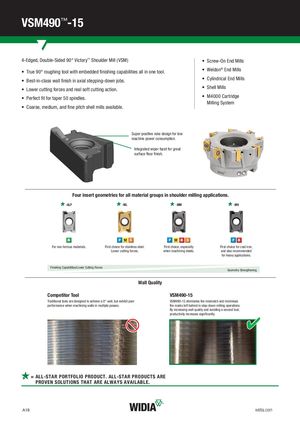

VSM490™-15 4-Edged, Double-Sided 90° Victory™ Shoulder Mill (VSM) • Screw-On End Mills  • True 90° roughing tool with embedded finishing capabilities all in one tool.  • Weldon® End Mills  • Best-in-class wall finish in axial stepping-down jobs.  • Cylindrical End Mills  • Lower cutting forces and real soft cutting action.  • Shell Mills  • Perfect fit for taper 50 spindles.  • M4000 Cartridge Milling System  • Coarse, medium, and fine pitch shell mills available.  Super-positive rake design for low machine power consumption. Integrated wiper facet for great surface floor finish. Four insert geometries for all material groups in shoulder milling applications. -ALP -ML -MM -MH N P M S P M K S P K For non-ferrous materials. First choice for stainless steel. First choice, especially First choice for cast iron, Lower cutting forces. when machining steels. and also recommended for heavy applications. Finishing Capabilities/Lower Cutting Forces Geometry Strengthening Wall Quality Competitor Tool VSM490-15 Traditional tools are designed to achieve a 0° wall, but exhibit poor VSM490-15 eliminates the mismatch and minimises performance when machining walls in multiple passes. the marks left behind in step-down milling operations. By increasing wall quality and avoiding a second tool, productivity increases significantly.  ✔ = ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE. A18 widia.com
