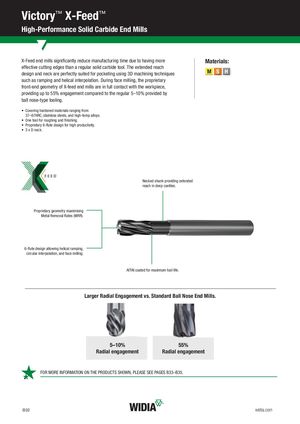

Victory™ X-Feed™ High-Performance Solid Carbide End Mills X-Feed end mills significantly reduce manufacturing time due to having more Materials: effective cutting edges than a regular solid carbide tool. The extended reach design and neck are perfectly suited for pocketing using 3D machining techniques M S H such as ramping and helical interpolation. During face milling, the proprietary front-end geometry of X-feed end mills are in full contact with the workpiece, providing up to 55% engagement compared to the regular 5–10% provided by ball nose-type tooling. • Covering hardened materials ranging from 37–67HRC, stainless steels, and high-temp alloys.  • One tool for roughing and finishing.  • Proprietary 6-flute design for high productivity.  • 3 x D neck.  Necked shank providing extended reach in deep cavities. Proprietary geometry maximising Metal Removal Rates (MRR). 6-flute design allowing helical ramping, circular interpolation, and face milling. AlTiN coated for maximum tool life. Larger Radial Engagement vs. Standard Ball Nose End Mills. 5–10% 55% Radial engagement Radial engagement FOR MORE INFORMATION ON THE PRODUCTS SHOWN, PLEASE SEE PAGES B33–B35. B32 widia.com
