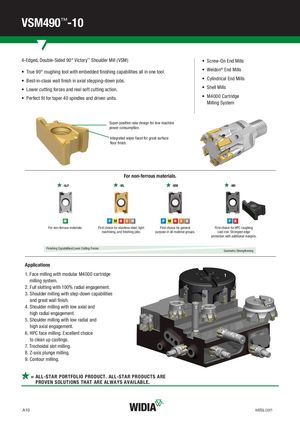

VSM490™-10 4-Edged, Double-Sided 90° Victory™ Shoulder Mill (VSM) • Screw-On End Mills  • True 90° roughing tool with embedded finishing capabilities all in one tool.  • Weldon® End Mills  • Best-in-class wall finish in axial stepping-down jobs.  • Cylindrical End Mills  • Lower cutting forces and real soft cutting action.  • Shell Mills  • Perfect fit for taper 40 spindles and driven units.  • M4000 Cartridge Milling System  Super-positive rake design for low machine power consumption. Integrated wiper facet for great surface floor finish. For non-ferrous materials. -ALP -ML -MM -MH N P M K S H P M K S H P K For non-ferrous materials. First choice for stainless steel, light First choice for general First choice for HPC roughing machining, and finishing jobs. purpose in all material groups. cast iron. Strongest edge protection with additional margins. Finishing Capabilities/Lower Cutting Forces Geometry Strengthening Applications 1. Face milling with modular M4000 cartridge 1 milling system. 2. F ull slotting with 100% radial engagement. 3. Shoulder milling with step-down capabilities and great wall finish. 4 4. Shoulder milling with low axial and 4 2 high radial engagement. 3 5. Shoulder milling with low radial and 8 high axial engagement. 6. H PC face milling. Excellent choice 5 to clean up castings. 7. T rochoidal slot milling. 8. Z-axis plunge milling. 6 7 9 9. C ontour milling. = ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE. A10 widia.com
