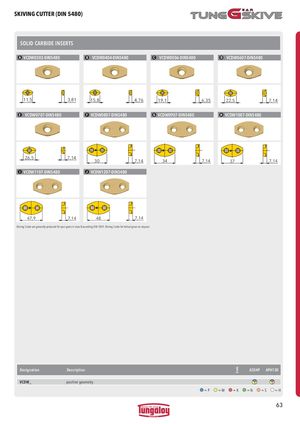

SKIVING CUTTER (DIN 5480) SOLID CARBIDE INSERTS A VCDW0303-DIN5480 B VCDW0404-DIN5480 C VCDW0506-DIN5480 D VCDW0607-DIN5480 11,5 3,81 15,8 4,76 19,1 6,35 22,5 7,14 E VCDW0707-DIN5480 F VCDW0807-DIN5480 G VCDW0907-DIN5480 H VCDW1007-DIN5480 26,5 7,14 30 7,14 34 7,14 37 7,14 I VCDW1107-DIN5480 J VCDW1207-DIN5480 47,9 7,14 48 7,14 Skiving Cutter are generally produced for spur gears in class B according DIN 1829. Skiving Cutter for helical gears on request. Designation Description A35HP APH130 VCDW_ positive geometry =P =M =K =N =S =H 63 Grade
