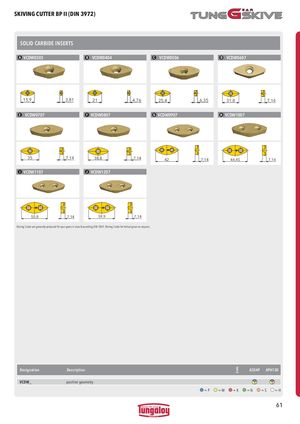

SKIVING CUTTER BP II (DIN 3972) SOLID CARBIDE INSERTS A VCDW0303 B VCDW0404 C VCDW0506 D VCDW0607 15,9 3,81 21 4,76 25,4 6,35 31,8 7,14 E VCDW0707 F VCDW0807 G VCDW0907 H VCDW1007 35 7,14 38,8 7,14 42 7,14 44,45 7,14 I VCDW1107 J VCDW1207 50,8 7,14 59,9 7,14 Skiving Cutter are generally produced for spur gears in class B according DIN 1829. Skiving Cutter for helical gears on request.. Designation Description A35HP APH130 VCDW_ positive geometry =P =M =K =N =S =H 61 Grade
