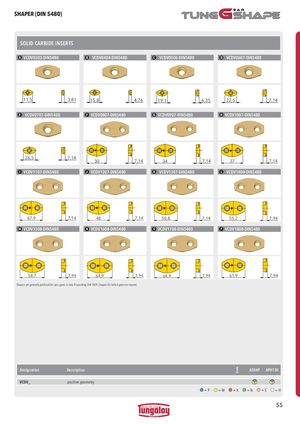

SHAPER (DIN 5480) SOLID CARBIDE INSERTS A VCDV0303-DIN5480 B VCDV0404-DIN5480 C VCDV0506-DIN5480 D VCDV0607-DIN5480 11,5 3,81 15,8 4,76 19,1 6,35 22,5 7,14 E VCDV0707-DIN5480 F VCDV0807-DIN5480 G VCDV0907-DIN5480 H VCDV1007-DIN5480 26,5 7,14 30 7,14 34 7,14 37 7,14 I VCDV1107-DIN5480 J VCDV1207-DIN5480 K VCDV1307-DIN5480 L VCDV1408-DIN5480 47,9 7,14 48 7,14 50,8 7,14 55,2 7,94 M VCDV1508-DIN5480 N VCDV1608-DIN5480 O VCDV1708-DIN5480 P VCDV1808-DIN5480 58,7 7,94 64,9 7,94 64,9 7,94 61,9 7,94 Shapers are generally produced for spur gears in class B according DIN 1829. Shapers für helical gears on request. Designation Description A35HP APH130 VCDV_ positive geometry =P =M =K =N =S =H 55 Grade
