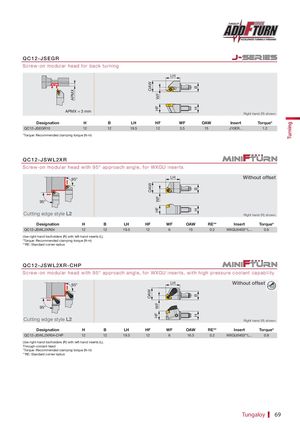

APMX OAWOAWOAW WFHFWFHFWFHF BHBHBH Turning QC12-JSEGR Screw-on modular head for back turning LH APMX = 3 mm Right hand (R) shown. Designation H B LH HF WF OAW Insert Torque* QC12-JSEGR10 12 12 19.5 12 3.5 15 J10ER... 1.2 *Torque: Recommended clamping torque (N∙m) QC12-JSWL2XR Screw-on modular head with 95° approach angle, for WXGU inserts 95° LH Without offset 95° Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSWL2XR04 12 12 19.5 12 6 15 0.2 WXGU0403**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSWL2XR-CHP Screw-on modular head with 95° approach angle, for WXGU inserts, with high pressure coolant capability 95° LH Without offset 95° Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSWL2XR04-CHP 12 12 19.5 12 6 16.5 0.2 WXGU0403**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius Tungaloy 69
