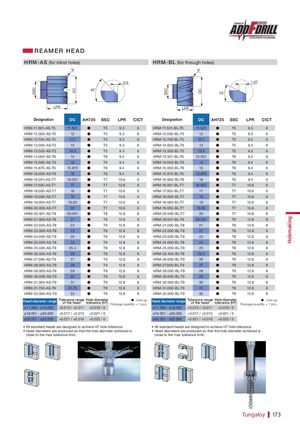

Брошюра Tungaloy новая продукция - страница 173

SSC DC SSC DC Holemaking REAMER HEAD H R M - A S (for blind holes) H R M - B L (for through holes) V V 0.5 1.07 45° 25° LPR LPR Designation DC AH725 SSC LPR CICT Designation DC AH725 SSC LPR CICT HRM-11.501-AS-T5 11.501 䖃 T5 9.3 6 HRM-11.501-BL-T5 11.501 䖃 T5 9.3 6 HRM-12.000-AS-T5 12 䖃 T5 9.3 6 HRM-12.000-BL-T5 12 䖃 T5 9.3 6 HRM-12.700-AS-T5 12.7 䖃 T5 9.3 6 HRM-12.700-BL-T5 12.7 䖃 T5 9.3 6 HRM-13.000-AS-T5 13 䖃 T5 9.3 6 HRM-13.000-BL-T5 13 䖃 T5 9.3 6 HRM-13.500-AS-T5 13.5 䖃 T5 9.3 6 HRM-13.500-BL-T5 13.5 䖃 T5 9.3 6 HRM-14.000-AS-T6 14 䖃 T6 9.4 6 HRM-13.501-BL-T6 13.501 䖃 T6 9.4 6 HRM-15.000-AS-T6 15 䖃 T6 9.4 6 HRM-14.000-BL-T6 14 䖃 T6 9.4 6 HRM-15.875-AS-T6 15.875 䖃 T6 9.4 6 HRM-15.000-BL-T6 15 䖃 T6 9.4 6 HRM-16.000-AS-T6 16 䖃 T6 9.4 6 HRM-15.875-BL-T6 15.875 䖃 T6 9.4 6 HRM-16.001-AS-T7 16.001 䖃 T7 10.6 6 HRM-16.000-BL-T6 16 䖃 T6 9.4 6 HRM-17.000-AS-T7 17 䖃 T7 10.6 6 HRM-16.001-BL-T7 16.001 䖃 T7 10.6 6 HRM-18.000-AS-T7 18 䖃 T7 10.6 6 HRM-17.000-BL-T7 17 䖃 T7 10.6 6 HRM-19.000-AS-T7 19 䖃 T7 10.6 6 HRM-18.000-BL-T7 18 䖃 T7 10.6 6 HRM-19.050-AS-T7 19.05 䖃 T7 10.6 6 HRM-19.000-BL-T7 19 䖃 T7 10.6 6 HRM-20.000-AS-T7 20 䖃 T7 10.6 6 HRM-19.050-BL-T7 19.05 䖃 T7 10.6 6 HRM-20.001-AS-T8 20.001 䖃 T8 12.8 8 HRM-20.000-BL-T7 20 䖃 T7 10.6 6 HRM-21.000-AS-T8 21 䖃 T8 12.8 8 HRM-20.001-BL-T8 20.001 䖃 T8 12.8 8 HRM-22.000-AS-T8 22 䖃 T8 12.8 8 HRM-21.000-BL-T8 21 䖃 T8 12.8 8 HRM-23.000-AS-T8 23 䖃 T8 12.8 8 HRM-22.000-BL-T8 22 䖃 T8 12.8 8 HRM-24.000-AS-T8 24 䖃 T8 12.8 8 HRM-23.000-BL-T8 23 䖃 T8 12.8 8 HRM-25.000-AS-T8 25 䖃 T8 12.8 8 HRM-24.000-BL-T8 24 䖃 T8 12.8 8 HRM-25.400-AS-T8 25.4 䖃 T8 12.8 8 HRM-25.000-BL-T8 25 䖃 T8 12.8 8 HRM-26.000-AS-T9 26 䖃 T9 12.8 8 HRM-25.400-BL-T8 25.4 䖃 T8 12.8 8 HRM-27.000-AS-T9 27 䖃 T9 12.8 8 HRM-26.000-BL-T9 26 䖃 T9 12.8 8 HRM-28.000-AS-T9 28 䖃 T9 12.8 8 HRM-27.000-BL-T9 27 䖃 T9 12.8 8 HRM-29.000-AS-T9 29 䖃 T9 12.8 8 HRM-28.000-BL-T9 28 䖃 T9 12.8 8 HRM-30.000-AS-T9 30 䖃 T9 12.8 8 HRM-29.000-BL-T9 29 䖃 T9 12.8 8 HRM-31.000-AS-T9 31 䖃 T9 12.8 8 HRM-30.000-BL-T9 30 䖃 T9 12.8 8 HRM-31.750-AS-T9 31.75 䖃 T9 12.8 8 HRM-31.000-BL-T9 31 䖃 T9 12.8 8 HRM-32.000-AS-T9 32 䖃 T9 12.8 8 HRM-32.000-BL-T9 32 䖃 T9 12.8 8 Head diameter range Tolerance rangeof the headHole diametertolerance (H7)᭹ : Line-upPackage quantity = 1 pcs.Head diameter rangeTolerance rangeof the headHole diametertolerance (H7)᭹ : Line-upPackage quantity = 1 pcs. ø11.500 - ø18.000 +0.015 / +0.011 +0.018 / 0 ø11.500 - ø18.000 +0.015 / +0.011 +0.018 / 0 ø18.001 - ø30.000 +0.017 / +0.013 +0.021 / 0 ø18.001 - ø30.000 +0.017 / +0.013 +0.021 / 0 ø30.001 - ø32.000 +0.021 / +0.016 +0.025 / 0 ø30.001 - ø32.000 +0.021 / +0.016 +0.025 / 0 • All standard heads are designed to achieve H7 hole tolerance. • All standard heads are designed to achieve H7 hole tolerance. • Head diameters are produced so that the hole diameter achieved is • Head diameters are produced so that the hole diameter achieved is close to the max tolerance limit. close to the max tolerance limit. Tungaloy 173
