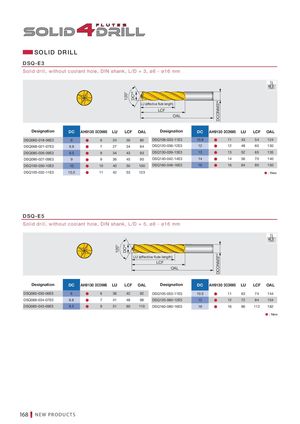

120° 120°DCh8 DCh8 DCONMSh6DCONMSh6 SOLID DRILL DSQ-E3 Solid drill, without coolant hole, DIN shank, L/D = 3, ø6 - ø16 mm LU (effective flute length) LCF OAL Designation DC AH9130 DCONMS LU LCF OAL Designation DC AH9130 DCONMS LU LCF OAL DSQ060-018-06E3 6 䖃 6 24 30 80 DSQ108-033-11E3 10.8 䖃 11 43 54 124 DSQ068-021-07E3 6.8 䖃 7 27 34 84 DSQ120-036-12E3 12 䖃 12 48 60 130 DSQ085-026-09E3 8.5 䖃 9 34 43 93 DSQ130-039-13E3 13 䖃 13 52 65 135 DSQ090-027-09E3 9 䖃 9 36 45 95 DSQ140-042-14E3 14 䖃 14 56 70 140 DSQ100-030-10E3 10 䖃 10 40 50 100 DSQ160-048-16E3 16 䖃 16 64 80 150 DSQ105-032-11E3 10.5 䖃 11 42 53 123 䖃 : New DSQ-E5 Solid drill, without coolant hole, DIN shank, L/D = 5, ø6 - ø16 mm LU (effective flute length) LCF OAL Designation DC AH9130 DCONMS LU LCF OAL Designation DC AH9130 DCONMS LU LCF OAL DSQ060-030-06E5 6 䖃 6 36 42 92 DSQ105-053-11E5 10.5 䖃 11 63 74 144 DSQ068-034-07E5 6.8 䖃 7 41 48 98 DSQ120-060-12E5 12 䖃 12 72 84 154 DSQ085-043-09E5 8.5 䖃 9 51 60 110 DSQ160-080-16E5 16 䖃 16 96 112 182 䖃 : New 168 NEW PRODUCTS
