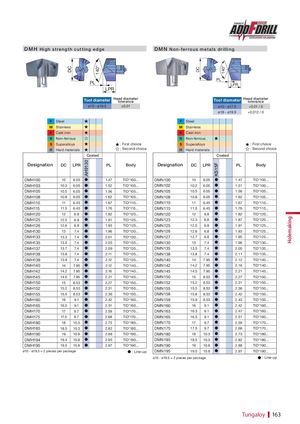

DC AH9130 140° DC KS15F 140° Holemaking DMH High strength cutting edge DMN Non-ferrous metals drilling PL PL LPR LPR Tool diameter Head diametertolerance Tool diameter Head diametertolerance ø10 - ø19.5 ±0.01 ø10 - ø17.5 +0.01 / 0 ø18 - ø19.9 +0.012 / 0 P Steel P Steel M Stainless M Stainless K Cast iron K Cast iron N Non-ferrous N Non-ferrous S Superalloys : First choice S Superalloys : First choice H Hard materials : Second choice H Hard materials : Second choice Coated Coated Designation DC LPR PL Body Designation DC LPR PL Body DMH100 10 6.05  1.47 TID*100... DMN100 10 6.05  1.47 TID*100... DMH103 10.3 6.05  1.52 TID*100... DMN102 10.2 6.05  1.51 TID*100... DMH105 10.5 6.05  1.56 TID*105... DMN105 10.5 6.05  1.56 TID*105... DMH108 10.8 6.05  1.62 TID*105... DMN108 10.8 6.05  1.62 TID*105... DMH110 11 6.45  1.67 TID*110... DMN110 11 6.45  1.67 TID*110... DMH115 11.5 6.45  1.76 TID*115... DMN115 11.5 6.45  1.76 TID*115... DMH120 12 6.8  1.82 TID*120... DMN120 12 6.8  1.82 TID*120... DMH125 12.5 6.8  1.91 TID*125... DMN123 12.3 6.8  1.87 TID*120... DMH126 12.6 6.8  1.93 TID*125... DMN125 12.5 6.8  1.91 TID*125... DMH130 13 7.4  1.96 TID*130... DMN126 12.6 6.8  1.93 TID*125... DMH133 13.3 7.4  2.01 TID*130... DMN127 12.7 6.8  1.95 TID*125... DMH135 13.5 7.4  2.05 TID*135... DMN130 13 7.4  1.96 TID*130... DMH137 13.7 7.4  2.09 TID*135... DMN135 13.5 7.4  2.05 TID*135... DMH138 13.8 7.4  2.11 TID*135... DMN138 13.8 7.4  2.11 TID*135... DMH139 13.9 7.4  2.12 TID*135... DMN140 14 7.95  2.12 TID*140... DMH140 14 7.95  2.12 TID*140... DMN142 14.2 7.95  2.16 TID*140... DMH142 14.2 7.95  2.16 TID*140... DMN145 14.5 7.95  2.21 TID*145... DMH145 14.5 7.95  2.21 TID*145... DMN150 15 8.53  2.27 TID*150... DMH150 15 8.53  2.27 TID*150... DMN152 15.2 8.53  2.31 TID*150... DMH152 15.2 8.53  2.31 TID*150... DMN155 15.5 8.53  2.36 TID*150... DMH155 15.5 8.53  2.36 TID*150... DMN158 15.8 8.53  2.42 TID*150... DMH160 16 9.1  2.42 TID*160... DMN159 15.9 8.53  2.43 TID*150... DMH165 16.5 9.1  2.51 TID*160... DMN160 16 9.1  2.42 TID*160... DMH170 17 9.7  2.59 TID*170... DMN163 16.3 9.1  2.47 TID*160... DMH175 17.5 9.7  2.68 TID*170... DMN165 16.5 9.1  2.51 TID*160... DMH180 18 10.3  2.73 TID*180... DMN170 17 9.7  2.59 TID*170... DMH185 18.5 10.3  2.82 TID*180... DMN175 17.5 9.7  2.68 TID*170... DMH190 19 10.8  2.88 TID*190... DMN180 18 10.3  2.73 TID*180... DMH194 19.4 10.8  2.95 TID*190... DMN185 18.5 10.3  2.82 TID*180... DMH195 19.5 10.8  2.97 TID*190... DMN190 19 10.8  2.88 TID*190... ø10 - ø19.5 = 2 pieces per package  : Line-up DMN195 19.5 10.8  2.97 TID*190... ø10 - ø19.5 = 2 pieces per package  : Line-up Tungaloy 163
