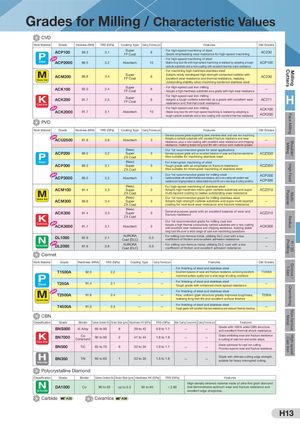

High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters Grades for Milling / Characteristic Values CVD Work Material Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness (μm) Features Old Grades ACP100 89.3 3.1 SuperFF Coat 6 · For high-speed machining of steel· Grade emphasising wear resistance for high-speed machining AC230 · For high-speed machining of steel Steel ACP2000 89.5 3.2 Absotech 10 · Stable long tool life with high-speed machining is realised by adopting a tough ACP100 carbide substrate and a new coating with excellent thermal crack resistance · For machining high-hardness stainless steel ACM200 89.8Stainless Steel3.4 SuperFF Coat 6 · Adopts newly developed high-strength cemented carbide withexcellent wear resistance and thermal resistance, realizingAC230 outstanding stability when machining hardened stainless steel ACK100 92.0 2.4 SuperFF Coat 6 · For high-speed cast iron milling· Adopts a high-hardness substrate as a grade with high wear resistance — ACK200 91.7Cast Iron 2.5 SuperFF Coat · For high-speed cast iron milling6· Adopts a tough carbide substrate as a grade with excellent wear AC211resistance and thermal crack resistanceH ACK2000 91.7 · For high-speed cast iron milling ACK1003.1Absotech10· Stable long tool life with high-speed machining is realised by adopting a tough carbide substrate and a new coating with excellent thermal resistance ACK200 PVD Work Material Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness (μm) Features Old Grades · General-purpose grade supporting steel, stainless steel, and cast iron machining ACU2500 91.6 3.8 Absotech 3 · Adopts a carbide substrate with excellent fracture resistance and wearresistance, plus a new coating with excellent wear resistance and chipping— resistance, realising stable long tool life with various work material grades (New) · Our 1st recommended grade for steel applications ACP200 89.5 3.2 Super 3 · General-purpose grade with an excellent balance of wear and fracture resistance ACZ330 ZX Coat · Also suitable for machining stainless steel Steel (New) · For interrupted machining of steel ACP300 89.3 3.1 Super 3 · Tough grade with an emphasis on fracture resistance ACZ350 ZX Coat · Also suitable for interrupted machining of stainless steel ACP3000 89.5 · Our 1st recommended grade for milling steel ACP2003.2Absotech3· Carbide substrate with excellent thermal crack resistance, plus a new coating with excellent wear resistance and chipping resistance, realises stable long tool life over a wide range of cutting conditions ACP300 (New) · For high-speed machining of stainless steel ACM100 91.4 3.3 Super 3 · Adopts high-hardness micro-grain carbide substrate and super ACZ310 ZX Coat multi-layered coating to realise outstanding wear resistance Stainless Steel ACM300 89.8 3.4 (New)Super · Our 1st recommended grade for milling stainless steel3· Adopts high-strength carbide substrate and super multi-layered— ZX Coat coating for next-level wear resistance and fracture resistance (New) ACK300 91.4 3.3 SuperZX Coat 3 · General-purpose grade with an excellent balance of wear andfracture resistance ACZ310 · Our 1st recommended grade for milling cast iron Cast Iron ACK3000 91.7 3.1 Absotech 3 · Adopts a high thermal conductivity carbide substrate and a new coatingwith excellent wear resistance and chipping resistance, realizing stableACK300 long tool life over a wide range of cast iron machining operations DL1000 92.9 2.1 AURORACoat (DLC) 0.5 · For milling non-ferrous metal, utilising DLC coat with a lowcoefficient of friction and excellent adhesion resistance— Non-Ferrous Metal DL2000 91.6 3.8 AURORACoat (DLC) 0.5 · For milling non-ferrous metal, utilising DLC coat with a lowcoefficient of friction and excellent adhesion resistance— Cermet Work Material Grade Hardness (HRA) TRS (GPa) Coating Type Coating Thickness (μm) Features Old Grades · For finishing of steel and stainless steel T1500A 92.0 2.2 — — · Excellent balance of wear and fracture resistance, achieving excellent T1200A machined surface quality over a wide range of cutting conditions Steel T250A 91.4 2.1 — — · For finishing of steel and stainless steel·Tough grade with enhanced crack spread resistance — · For finishing of steel and stainless steel T2500A 91.8 2.4 — — · Fine, uniform grain structure greatly improves toughness, T250A Stainless Steel realising long tool life and excellent surface finishes T4500A 91.0 2.3 — — · For finishing of steel and stainless steel· Tough grade with excellent fracture resistance and reduced thermal cracking— CBN Classification Grade Binder Carbon Content (%) Grain Size (μm) Hardness HV (GPa) TRS (GPa) Main Coating Components Coating Thickness (μm) Features BNS800 Al Alloy 85 to 90 8 39 to 42 0.9 to 1.1 — — Grade with 100% solid CBN structureand excellent thermal shock resistance. BN7000 CoCompound 90 to 95 2 41 to 44 1.8 to 1.9 — — Grade exhibiting wear and fracture resistancein cutting of cast iron and exotic alloys. Cast Iron BN500 TiC 65 to 70 6 32 to 34 1.0 to 1.1 — Grade optimised for cast iron cutting.—Provides superior wear and fracture resistance. BN350 TiN 60 to 65 1 33 to 35 1.5 to 1.6 —Hardened Steel— Grade with ultimate cutting edge strength,suitable for heavy interrupted cutting. Polycrystalline Diamond Classification Grade Binder Carbon Content (%) Grain Size (μm) Hardness HK (GPa) TRS (GPa) Features High-density sintered material made of ultra-fine grain diamond DA1000 Co 90 to 95 up to 0.5 50 to 60 ≈ 2.60 that demonstrates optimum wear and fracture resistance and Non-Ferrous Metal excellent edge sharpness. Carbide A30 Ceramics A36 : 1st Recommended Grade : 2nd Recommended Grade C : CVD Coating, P : PVD Coating Blank: Non-Coated H13
