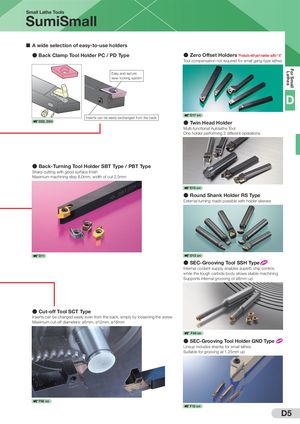

Lathes For Small Small Lathe Tools SumiSmall ■ A wide selection of easy-to-use holders ● Back Clamp Tool Holder PC / PD Type ● Zero Offset Holders *Products with part number suffix “-X” Tool compensation not required for small gang-type lathes Easy and secure lever locking system D D17 on Inserts can be easily exchanged from the back D22, D24 ● Twin Head Holder Multi-functional Autolathe Tool One holder performing 2 different operations ● Back-Turning Tool Holder SBT Type / PBT Type Sharp cutting with good surface finish Maximum machining step 8.0mm, width of cut 2.5mm E10 on ● Round Shank Holder RS Type External turning made possible with holder sleeves D11 D13 on ● SEC-Grooving Tool SSH Type Internal coolant supply enables superb chip control, while the tough carbide body allows stable machining Supports internal grooving of ø8mm up ● Cut-off Tool SCT Type Inserts can be changed easily even from the back, simply by loosening the screw Maximum cut-off diameters: ø5mm, ø12mm, ø16mm F46 on ● SEC-Grooving Tool Holder GND Type Lineup includes shanks for small lathes Suitable for grooving at 1.25mm up F66 on F10 on D5
