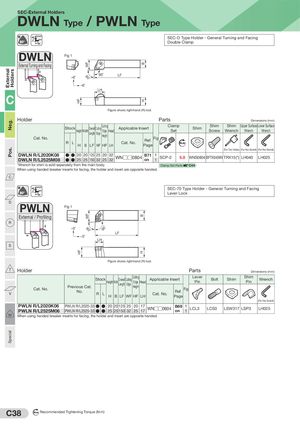

Общий каталог Sumitomo 2019 - 2020 - страница 208

SEC-External Holders DWLN Type / PWLN Type 95˚ SEC-D Type Holder - General Turning and Facing 95˚ Double Clamp DWLN Fig 1 WF B External Turning and Facing External Holders 95˚ LF –6˚ 80 –6˚ ˚ LH C HF H Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Neg. Cutting Clamp Shim Shim Upper Surface Lower Surface Stock Overall Cutting Applicable Insert Shim Height Width Edge Head Set Screw Wrench Wrench Wrench Length Edge Height Cat. No. Fig Ref. R L Cat. No. Nm H B LF WF HF LH Page Pos. (For Torx Holes) (For Hex Socket) (For Hex Socket) DWLN R/L2020K08 ● ● 20 20 125 25 20 32 B71 1 WN□□0804 on SCP-2 5.0 WNS0804 BFTX0409N TRX15(*) LH040 LH025 DWLN R/L2525M08 ● ● 25 25 150 32 25 32 1 *Wrench for shim is sold separately from the main body. Clamp Set Parts C44 When using handed breaker inserts for facing, the holder and insert are opposite handed. C 95˚ SEC-70 Type Holder - General Turning and Facing 95˚ Lever Lock D PWLN Fig 1 WF External / Profiling B R –5˚ ˚ 95 80 LF ˚ –5˚ LH S HF H Figure shows right-hand (R) tool. T Holder Parts  Dimensions (mm) Cutting Lever Shim Stock Overall Cutting Applicable Insert Bolt Shim Wrench Height Width Edge Head Pin Pin Length Edge Previous Cat. Height Cat. No. Fig No. Ref. V R L Cat. No. H B LF WF HF LH Page (For Hex Socket) PWLN R/L2020K06 PWLN R/L2020-33 ● ● 20 20 125 25 20 17 B69 1 WN□□0604 on LCL3 LCS3 LSW317 LSP3 LH025 PWLN R/L2525M06 PWLN R/L2525-33 ● ● 25 25 150 32 25 17 1 W When using handed breaker inserts for facing, the holder and insert are opposite handed. Special C38 N m Recommended Tightening Torque (N·m)
