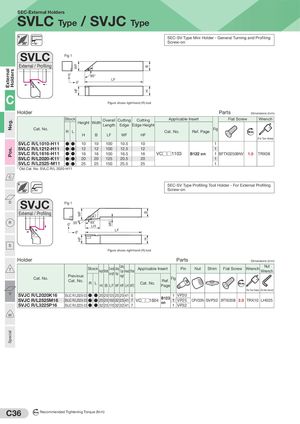

SEC-External Holders SVLC Type / SVJC Type SEC-SV Type Mini Holder - General Turning and Profiling 95˚ Screw-on SVLC Fig 1 External / Profiling WF B External Holders 0˚ 95° LF 0˚ HF H C Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Stock Overall Cutting Cutting Applicable Insert Flat Screw Wrench Neg. Height Width Length Edge Edge Height Cat. No. Fig R L Cat. No. Ref. Page Nm H B LF WF HF (For Torx Holes) SVLC R/L1010-H11 ● ● 10 10 100 10.5 10 1 SVLC R/L1212-H11 ● ● 12 12 100 12.5 12 1 Pos. SVLC R/L1616-H11 ● ● 16 16 100 16.5 16 VC□□1103 B122 on 1 BFTX02508NV 1.5 TRX08 SVLC R/L2020-K11* ● ● 20 20 125 20.5 20 1 SVLC R/L2525-M11 ● ● 25 25 150 25.5 25 1 * Old Cat. No. SVLC R/L 2020-H11 C SEC-SV Type Profiling Tool Holder - For External Profiling 93° Screw-on D SVJC Fig 1 External / Profiling B WF R 93˚ 0˚ 35˚ WF2 LH LF 0˚ HF H S Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Cutting Nut T Stock Overall Cutting Applicable Insert Pin Nut Shim Flat Screw Wrench Height Width Edge Head Offset Wrench Length Edge Previous Height Cat. No. Fig Cat. No. Ref. R L Cat. No. Nm H B LF WF HF LH WF2 Page (For Torx Holes) (For Hex Socket) V SVJC R/L2020-33 ● ● 20 20 125 25 20 41 5 SVJC R/L2020K16 1 VP20 B123 SVJC R/L2525M16 SVJC R/L2525-33 ● ● 25 25 150 32 25 41 7 VC□□1604 1 VP25 CPV33N SVP32 BFTX03508 2.0 TRX10 LH025 on SVJC R/L3225P16 SVJC R/L3225-33 ● ● 32 25 170 32 32 41 7 1 VP32 W Special C36 N m Recommended Tightening Torque (N·m)
