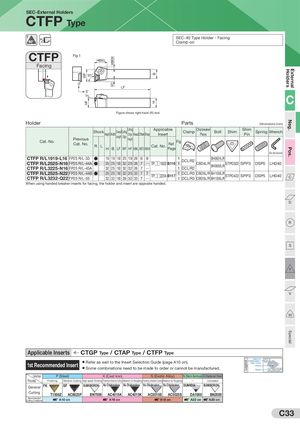

SEC-External Holders CTFP Type 91° SEC-40 Type Holder - Facing Clamp-on CTFP Fig 1 HBKW HBKL Facing External Holders B WF 91˚ 0˚ WF2 LF 5˚ C HF5˚ H Figure shows right-hand (R) tool. Neg. Holder Parts  Dimensions (mm) Cutting Applicable Chipbreaker Shim Stock Overall Cutting Clamp Bolt Shim Spring Wrench Height Width Edge Head Offset Step Insert Piece Pin Length Edge Previous Height Cat. No. Fig Cat. No. Ref. R L Cat. No. H B LF WF HF HBKL WF2 HBKW Page Pos. (For Hex Socket) CTFP R/L1919-L16 FP25 R/L-33 ● 19 19 140 25 19 26 6 8 1 BH0824L/R DCL/R2 CTFP R/L2525-N16 FP25 R/L-44A ● 25 25 160 32 25 26 7 Q TP□□1603 B116 1 CBD4L/R STPD322 SPP3 DSP5 LH040 BH0830L/R CTFP R/L3225-N16 FP25 R/L-45A 32 25 160 32 32 26 7 Q 1 DCL/R2 CTFP R/L2525-N22 FP25 R/L-44B ● 25 25 160 32 25 33 7 7 1 DCL/R3 CBD5L/R BH1030L/R TP□□2204 B117 STPD422 SPP3 DSP5 LH040 C CTFP R/L3232-Q22 FP25 R/L-55 32 32 180 39 32 33 7 Q 1 DCL/R3 CBD5L/R BH1036L/R When using handed breaker inserts for facing, the holder and insert are opposite handed. D R S T V W Special Applicable Inserts CTGP Type / CTAP Type / CTFP Type Name of ● Refer as well to the Insert Selection Guide (page A10 on). Chipbreaker / GU Legend 1st Recommended Insert CBN / PCD Photo ● Some combinations need to be made to order or cannot be manufactured. Grade AC8025P Cutting Range P (Steel) K (Cast Iron) S (Exotic Alloy) N (Non-ferrous) H (Hardened Steel) Process Finishing Medium Cutting High-speed Finishing Finishing to Medium Cutting Medium to Roughing Finishing to Medium Cutting Medium to Roughing Q Uncoated No Chipbreaker No Chipbreaker No Chipbreaker No Chipbreaker SUMIDIA SUMIBORON General FK SF SUMIBORON Cutting T1500Z AC8025P BN7000 AC4015K AC4015K AC5015S AC5025S DA1000 BN2000 Recommended Cutting Conditions A10 on A16 on A18 on A22 on A20 on C33
