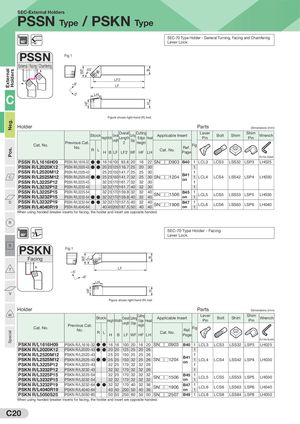

SEC-External Holders PSSN Type / PSKN Type SEC-70 Type Holder - General Turning, Facing and Chamfering 45˚ Lever Lock PSSN Fig 1 External / Facing / Chamfering 45˚ External WF B Holders LF2 –8˚ LF 0˚ LH C HF H Figure shows right-hand (R) tool. Neg. Holder Parts  Dimensions (mm) Overall Cutting Lever Shim Stock Overall Cutting Applicable Insert Bolt Shim Wrench Height Width Length Edge Head Pin Pin Length Edge Previous Cat. 2 Height Cat. No. Fig No. Ref. Pos. R L Cat. No. H B LF LF2 WF HF LH Page (For Hex Socket) PSSN R/L1616H09 PSSN R/L1616-32 ● ● 16 16 100 93.8 20 16 22 SN□□0903 B40 1 LCL3 LCS3 LSS32 LSP3 LH025 PSSN R/L2020K12 PSSN R/L2020-43 ● ● 20 20 125 116.7 25 20 30 1 PSSN R/L2520M12 PSSN R/L2520-43 25 20 150 141.7 25 25 30 1 B41 C PSSN R/L2525M12 PSSN R/L2525-43 ● ● 25 25 150 141.7 32 25 30 SN□□1204 1 LCL4 LCS4 LSS42 LSP4 LH030 on PSSN R/L3225P12 PSSN R/L3225-43 32 25 170 161.7 32 32 30 1 PSSN R/L3232P12 PSSN R/L3232-43 32 32 170 161.7 40 32 30 1 PSSN R/L3225P15 PSSN R/L3225-54 32 25 170 159.8 32 32 40 B45 1 SN□□1506 on LCL5 LCS5 LSS53 LSP5 LH030 PSSN R/L3232P15 PSSN R/L3232-54 ● ● 32 32 170 159.8 40 32 40 1 D PSSN R/L3232P19 PSSN R/L3232-64 ● ● 32 32 170 157.5 40 32 40 B47 1 SN□□1906 on LCL6 LCS6 LSS63 LSP6 LH040 PSSN R/L4040R19 PSSN R/L4040-64 40 40 200 187.5 50 40 40 1 When using handed breaker inserts for facing, the holder and insert are opposite handed. R 75° SEC-70 Type Holder - Facing Lever Lock PSKN S Fig 1 Facing WF B ˚ 75 T LF –5˚ –6˚ LH HF H V Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) W Cutting Lever Shim Stock Overall Cutting Applicable Insert Bolt Shim Wrench Height Width Edge Head Pin Pin Length Edge Previous Cat. Height Cat. No. Fig No. Ref. R L Cat. No. Special H B LF WF HF LH Page (For Hex Socket) PSKN R/L1616H09 PSKN R/L1616-32 ● ● 16 16 100 20 16 20 SN□□0903 B40 1 LCL3 LCS3 LSS32 LSP3 LH025 PSKN R/L2020K12 PSKN R/L2020-43 ● ● 20 20 125 25 20 26 1 PSKN R/L2520M12 PSKN R/L2520-43 25 20 150 25 25 26 1 B41 PSKN R/L2525M12 PSKN R/L2525-43 ● ● 25 25 150 32 25 26 SN□□1204 1 LCL4 LCS4 LSS42 LSP4 LH030 on PSKN R/L3225P12 PSKN R/L3225-43 32 25 170 32 32 26 1 PSKN R/L3232P12 PSKN R/L3232-43 32 32 170 32 32 26 1 PSKN R/L3225P15 PSKN R/L3225-54 32 25 170 32 32 32 B45 1 SN□□1506 LCL5 LCS5 LSS53 LSP5 LH030 PSKN R/L3232P15 PSKN R/L3232-54 32 32 170 32 32 32 on 1 PSKN R/L3232P19 PSKN R/L3232-64 ● ● 32 32 170 40 32 36 B47 1 SN□□1906 LCL6 LCS6 LSS63 LSP6 LH040 PSKN R/L4040R19 PSKN R/L4040-64 40 40 200 50 40 36 on 1 PSKN R/L5050S25 PSKN R/L5050-85 50 50 250 60 50 50 SN□□2507 B49 1 LCL8 LCS8 LSS84 LSP8 LH050 When using handed breaker inserts for facing, the holder and insert are opposite handed. C20
