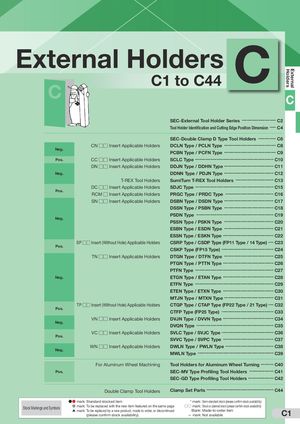

Общий каталог Sumitomo 2019 - 2020 - страница 171

Holders External External C Holders C1 to C44 C C SEC-External Tool Holder Series ............................ C2 Tool Holder Identification and Cutting Edge Position Dimension ...... C4 SEC-Double Clamp D Type Tool Holders ............... C6 CN □□ Insert Applicable Holders DCLN Type / PCLN Type .......................................... C8 Neg. PCBN Type / PCFN Type .......................................... C9 Pos. CC □□ Insert Applicable Holders SCLC Type ............................................................... C10 DN □□ Insert Applicable Holders DDJN Type / DDHN Type ........................................ C11 Neg. DDNN Type / PDJN Type ........................................ C12 T-REX Tool Holders SumiTurn T-REX Tool Holders ............................... C13 DC □□ Insert Applicable Holders SDJC Type ............................................................... C15 Pos. RCM □ Insert Applicable Holders PRGC Type / PRDC Type ....................................... C16 SN □□ Insert Applicable Holders DSBN Type / DSDN Type ........................................ C17 DSSN Type / PSBN Type ........................................ C18 PSDN Type .............................................................. C19 Neg. PSSN Type / PSKN Type ........................................ C20 ESBN Type / ESDN Type ........................................ C21 ESSN Type / ESKN Type ......................................... C22 SP □□ Insert (Without Hole) Applicable Holders CSRP Type / CSDP Type (FP11 Type / 14 Type) ..... C23 Pos. CSKP Type (FP15 Type) .......................................... C24 TN □□ Insert Applicable Holders DTGN Type / DTFN Type ........................................ C25 PTGN Type / PTTN Type ......................................... C26 PTFN Type ............................................................... C27 Neg. ETGN Type / ETAN Type ......................................... C28 ETFN Type ............................................................... C29 ETEN Type / ETXN Type ......................................... C30 MTJN Type / MTXN Type ........................................ C31 TP □□ Insert (Without Hole) Applicable Holders CTGP Type / CTAP Type (FP22 Type / 21 Type) ..... C32 Pos. CTFP Type (FP25 Type) .......................................... C33 VN □□ Insert Applicable Holders DVJN Type / DVVN Type ......................................... C34 Neg. DVQN Type .............................................................. C35 VC □□ Insert Applicable Holders SVLC Type / SVJC Type .......................................... C36 Pos. SVVC Type / SVPC Type ......................................... C37 WN □□ Insert Applicable Holders DWLN Type / PWLN Type ....................................... C38 Neg. MWLN Type ............................................................. C39 For Aluminum Wheel Machining Tool Holders for Aluminum Wheel Turning ........... C40 Pos. SEC-MV Type Profiling Tool Holders .................... C41 SEC-GD Type Profiling Tool Holders ..................... C42 Double Clamp Tool Holders Clamp Set Parts ...................................................... C44 ●● mark: Standard stocked item * mark: Semi-standard stock (please confirm stock availability) Stock Markings and Symbols ● mark: To be replaced with the new item featured on the same page ○○ mark: Stock or planned stock (please confirm stock availability)▲ mark: To be replaced by a new product, made to order, or discontinuedBlank: Made-to-order item(please confirm stock availability).— mark: Not availableC1
