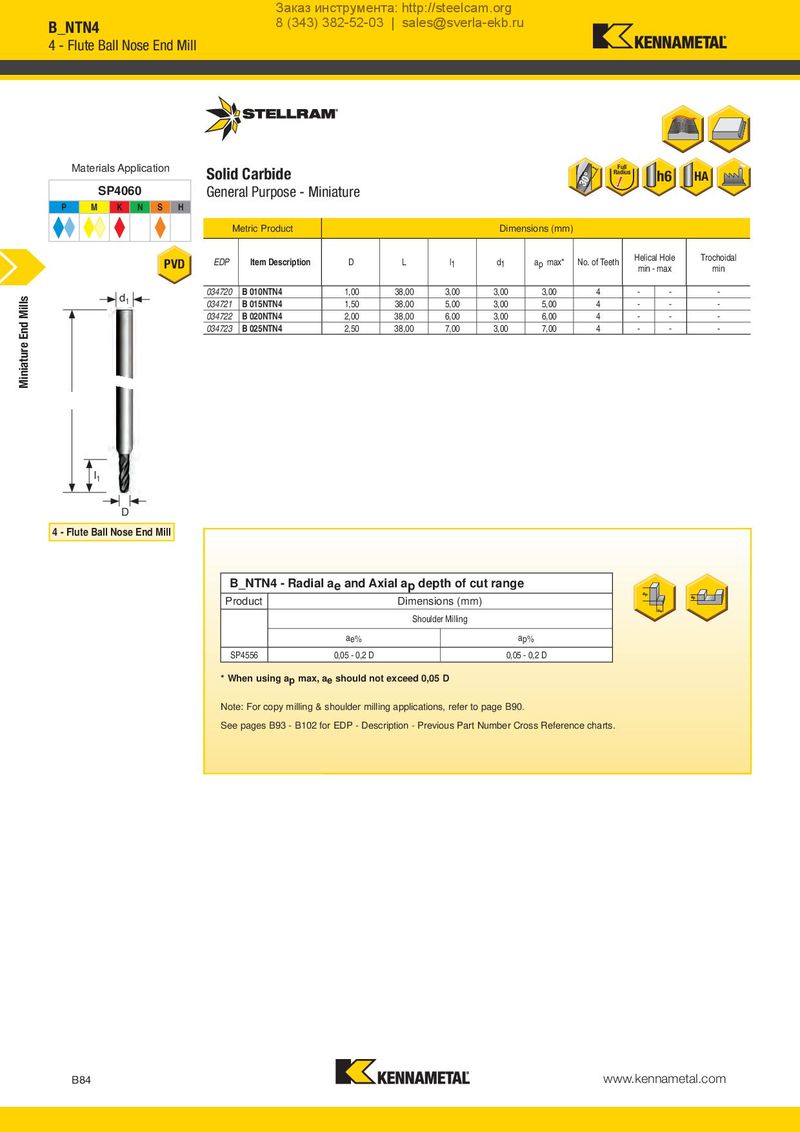

Каталог Stellram твердосплавные цельные фрезы - страница 85

Заказ инструмента: http://steelcam.org B_NTN4 8 (343) 382-52-03 | sales@sverla-ekb.ru 4 - Flute Ball Nose End Mill Materials Application Solid Carbide Full Radius h6 HA SP4060 General Purpose - Miniature P M K N S H Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min Miniature End Mills d1 034720 B 010NTN4 1,00 38,00 3,00 3,00 3,00 4 - - - 034721 B 015NTN4 1,50 38,00 5,00 3,00 5,00 4 - - - 034722 B 020NTN4 2,00 38,00 6,00 3,00 6,00 4 - - - 034723 B 025NTN4 2,50 38,00 7,00 3,00 7,00 4 - - - I1 D 4 - Flute Ball Nose End Mill B_NTN4 - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ap ae Shoulder Milling ae% ap% SP4556 0,05 - 0,2 D 0,05 - 0,2 D * When using ap max, ae should not exceed 0,05 D Note: For copy milling & shoulder milling applications, refer to page B90. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B84 www.kennametal.com
