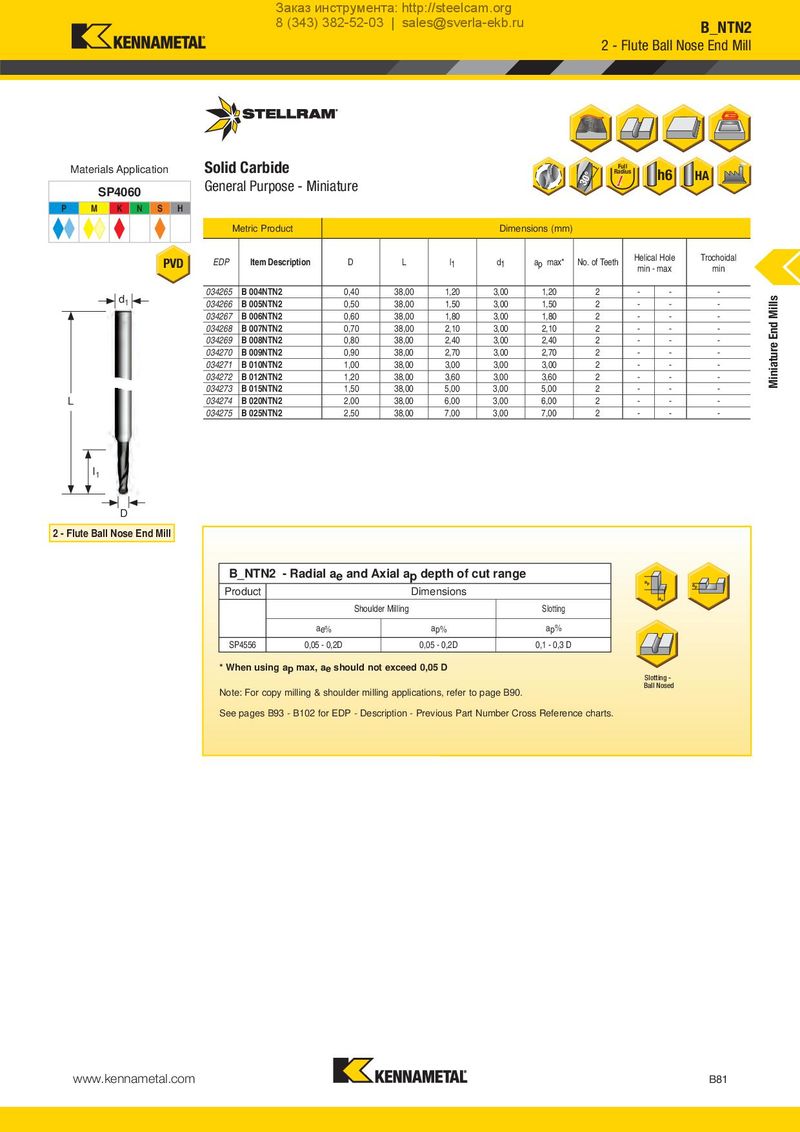

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru B_NTN2 2 - Flute Ball Nose End Mill Materials Application Solid Carbide Full Radius h6 HA General Purpose - Miniature SP4060 P M K N S H Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min d1 034265 B 004NTN2 0,40 38,00 1,20 3,00 1,20 2 - - - Miniature End Mills 034266 B 005NTN2 0,50 38,00 1,50 3,00 1,50 2 - - - 034267 B 006NTN2 0,60 38,00 1,80 3,00 1,80 2 - - - 034268 B 007NTN2 0,70 38,00 2,10 3,00 2,10 2 - - - 034269 B 008NTN2 0,80 38,00 2,40 3,00 2,40 2 - - - 034270 B 009NTN2 0,90 38,00 2,70 3,00 2,70 2 - - - 034271 B 010NTN2 1,00 38,00 3,00 3,00 3,00 2 - - - 034272 B 012NTN2 1,20 38,00 3,60 3,00 3,60 2 - - - 034273 B 015NTN2 1,50 38,00 5,00 3,00 5,00 2 - - - L 034274 B 020NTN2 2,00 38,00 6,00 3,00 6,00 2 - - - 034275 B 025NTN2 2,50 38,00 7,00 3,00 7,00 2 - - - I1 D 2 - Flute Ball Nose End Mill B_NTN2 - Radial ae and Axial ap depth of cut range ap ap Product Dimensions ae Shoulder Milling Slotting ae% ap% ap% SP4556 0,05 - 0,2D 0,05 - 0,2D 0,1 - 0,3 D * When using ap max, ae should not exceed 0,05 D Slotting - Ball Nosed Note: For copy milling & shoulder milling applications, refer to page B90. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. www.kennametal.com B81
