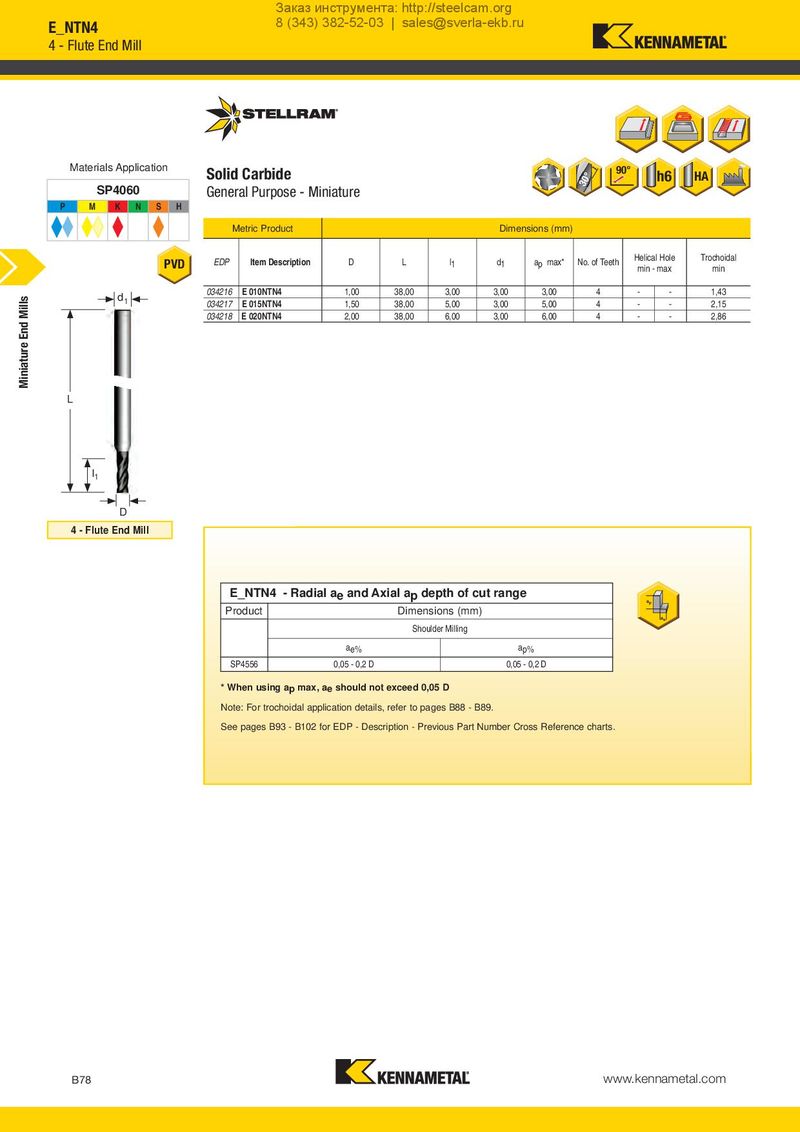

Заказ инструмента: http://steelcam.org E_NTN4 8 (343) 382-52-03 | sales@sverla-ekb.ru 4 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 General Purpose - Miniature P M K N S H Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min Miniature End Mills d1 034216 E 010NTN4 1,00 38,00 3,00 3,00 3,00 4 - - 1,43 034217 E 015NTN4 1,50 38,00 5,00 3,00 5,00 4 - - 2,15 034218 E 020NTN4 2,00 38,00 6,00 3,00 6,00 4 - - 2,86 L I1 D 4 - Flute End Mill E_NTN4 - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ae Shoulder Milling ae% ap% SP4556 0,05 - 0,2 D 0,05 - 0,2 D * When using ap max, ae should not exceed 0,05 D Note: For trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B78 www.kennametal.com
