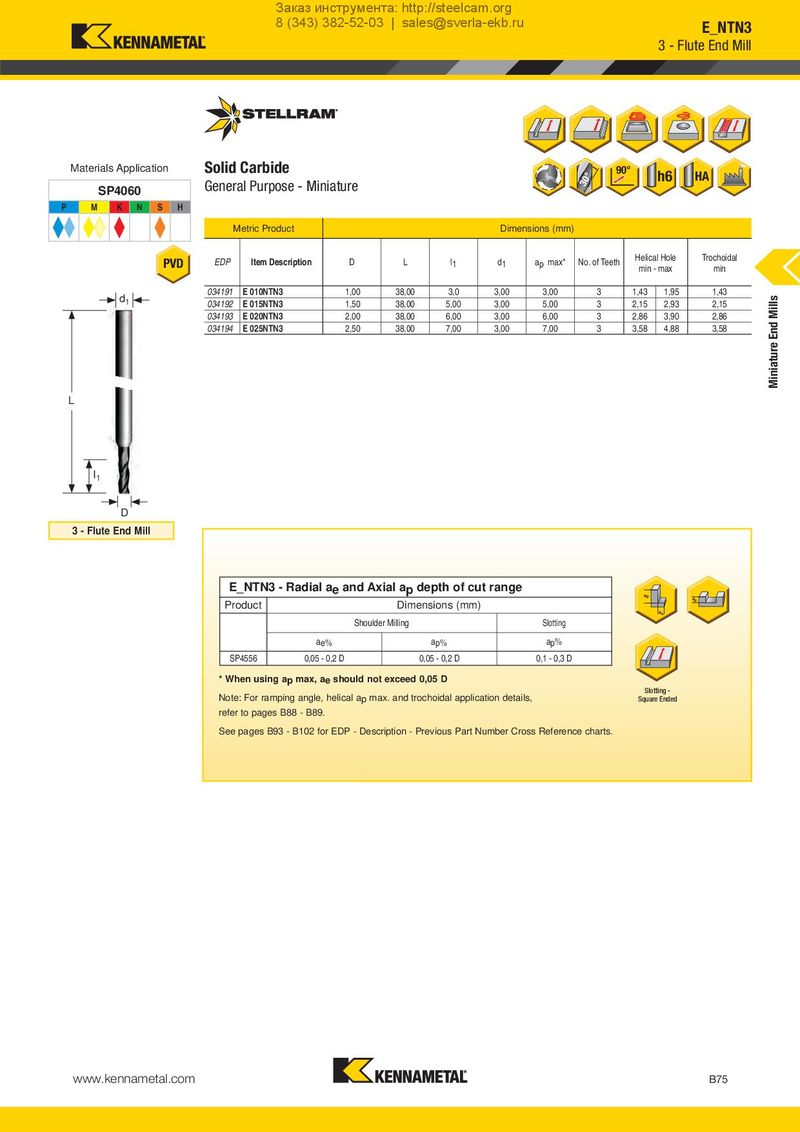

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru E_NTN3 3 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 General Purpose - Miniature P M K N S H Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min d1 034191 E 010NTN3 1,00 38,00 3,0 3,00 3,00 3 1,43 1,95 1,43 Miniature End Mills 034192 E 015NTN3 1,50 38,00 5,00 3,00 5,00 3 2,15 2,93 2,15 034193 E 020NTN3 2,00 38,00 6,00 3,00 6,00 3 2,86 3,90 2,86 034194 E 025NTN3 2,50 38,00 7,00 3,00 7,00 3 3,58 4,88 3,58 L I1 D 3 - Flute End Mill E_NTN3 - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ap ae Shoulder Milling Slotting ae% ap% ap% SP4556 0,05 - 0,2 D 0,05 - 0,2 D 0,1 - 0,3 D * When using ap max, ae should not exceed 0,05 D Note: For ramping angle, helical ap max. and trochoidal application details, Slotting - Square Ended refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. www.kennametal.com B75
