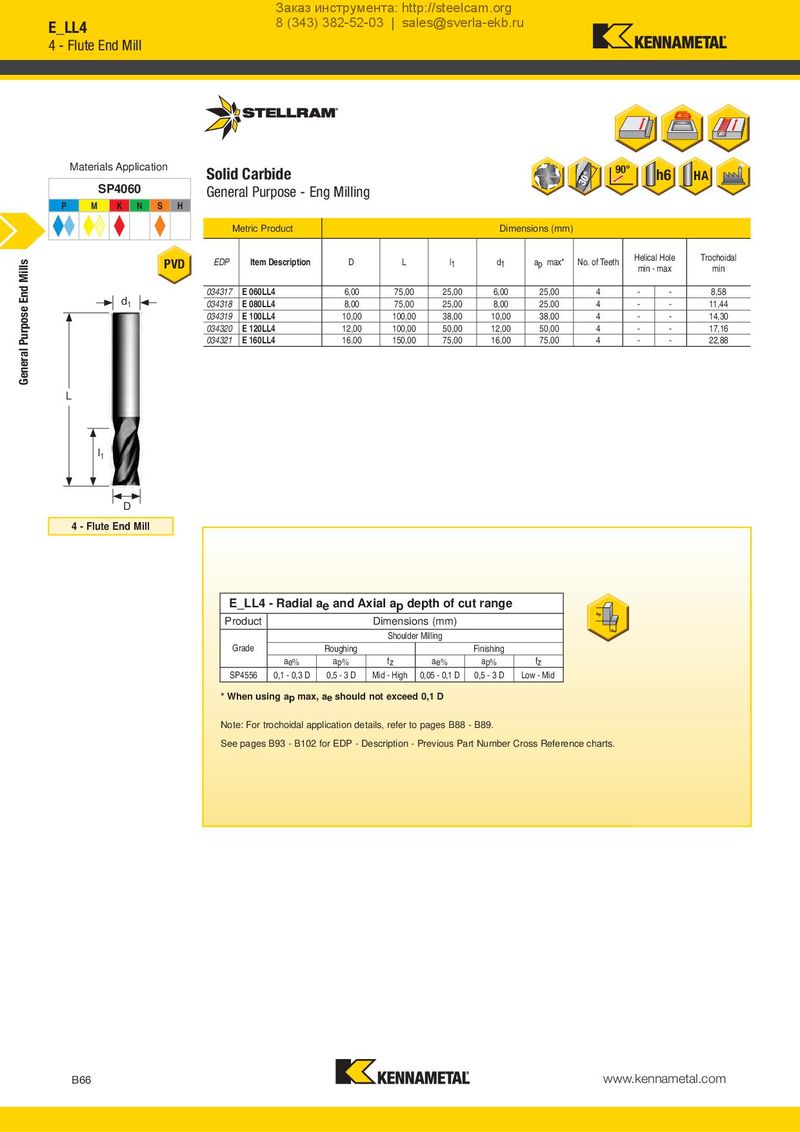

Заказ инструмента: http://steelcam.org E_LL4 8 (343) 382-52-03 | sales@sverla-ekb.ru 4 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 General Purpose - Eng Milling P M K N S H Metric Product Dimensions (mm) General Purpose End Mills PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min d1 034317 E 060LL4 6,00 75,00 25,00 6,00 25,00 4 - - 8,58 034318 E 080LL4 8,00 75,00 25,00 8,00 25,00 4 - - 11,44 034319 E 100LL4 10,00 100,00 38,00 10,00 38,00 4 - - 14,30 034320 E 120LL4 12,00 100,00 50,00 12,00 50,00 4 - - 17,16 034321 E 160LL4 16,00 150,00 75,00 16,00 75,00 4 - - 22,88 L I1 D 4 - Flute End Mill E_LL4 - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) Shoulder Milling ae Grade Roughing Finishing ae% ap% fz ae% ap% fz SP4556 0,1 - 0,3 D 0,5 - 3 D Mid - High 0,05 - 0,1 D 0,5 - 3 D Low - Mid * When using ap max, ae should not exceed 0,1 D Note: For trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B66 www.kennametal.com
