Каталог Stellram твердосплавные цельные фрезы - страница 55

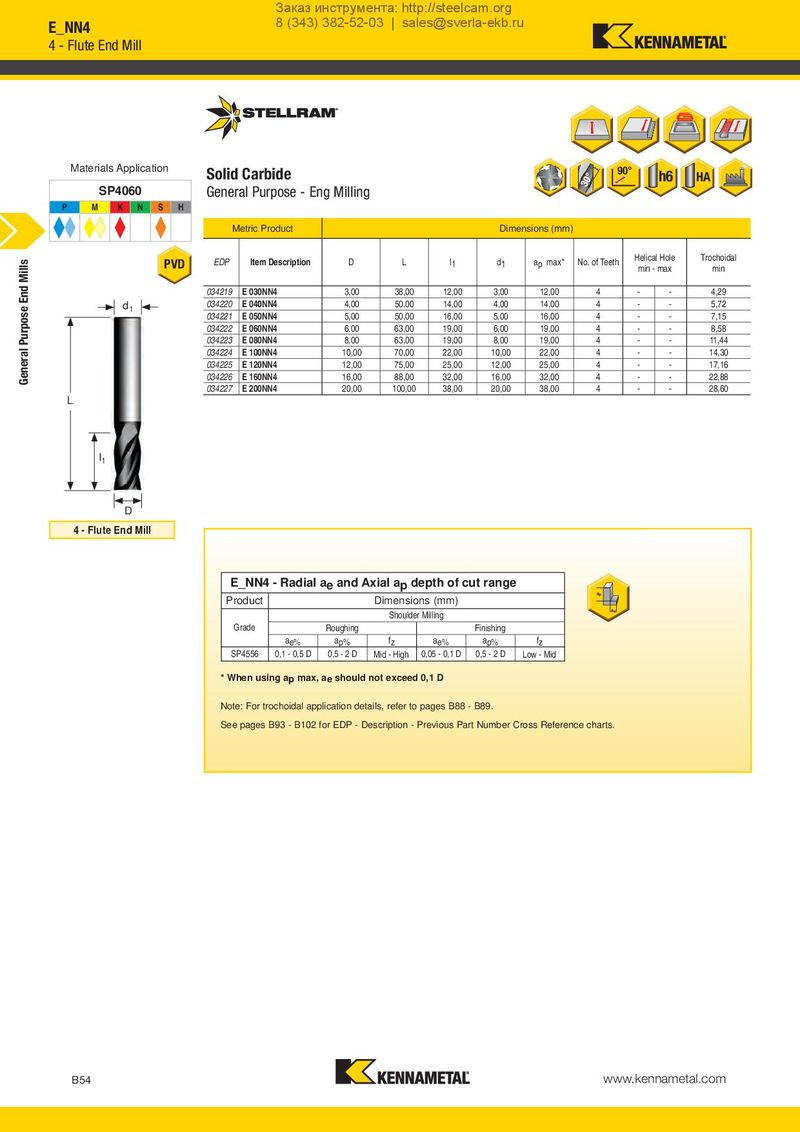

Заказ инструмента: http://steelcam.org E_NN4 8 (343) 382-52-03 | sales@sverla-ekb.ru 4 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 General Purpose - Eng Milling P M K N S H Metric Product Dimensions (mm) General Purpose End Mills PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min 034219 E 030NN4 3,00 38,00 12,00 3,00 12,00 4 - - 4,29 d1 034220 E 040NN4 4,00 50,00 14,00 4,00 14,00 4 - - 5,72 034221 E 050NN4 5,00 50,00 16,00 5,00 16,00 4 - - 7,15 034222 E 060NN4 6,00 63,00 19,00 6,00 19,00 4 - - 8,58 034223 E 080NN4 8,00 63,00 19,00 8,00 19,00 4 - - 11,44 034224 E 100NN4 10,00 70,00 22,00 10,00 22,00 4 - - 14,30 034225 E 120NN4 12,00 75,00 25,00 12,00 25,00 4 - - 17,16 034226 E 160NN4 16,00 88,00 32,00 16,00 32,00 4 - - 22,88 034227 E 200NN4 20,00 100,00 38,00 20,00 38,00 4 - - 28,60 L I1 D 4 - Flute End Mill E_NN4 - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) Shoulder Milling ae Grade Roughing Finishing ae% ap% fz ae% ap% fz SP4556 0,1 - 0,5 D 0,5 - 2 D Mid - High 0,05 - 0,1 D 0,5 - 2 D Low - Mid * When using ap max, ae should not exceed 0,1 D Note: For trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B54 www.kennametal.com
