Каталог Stellram твердосплавные цельные фрезы - страница 52

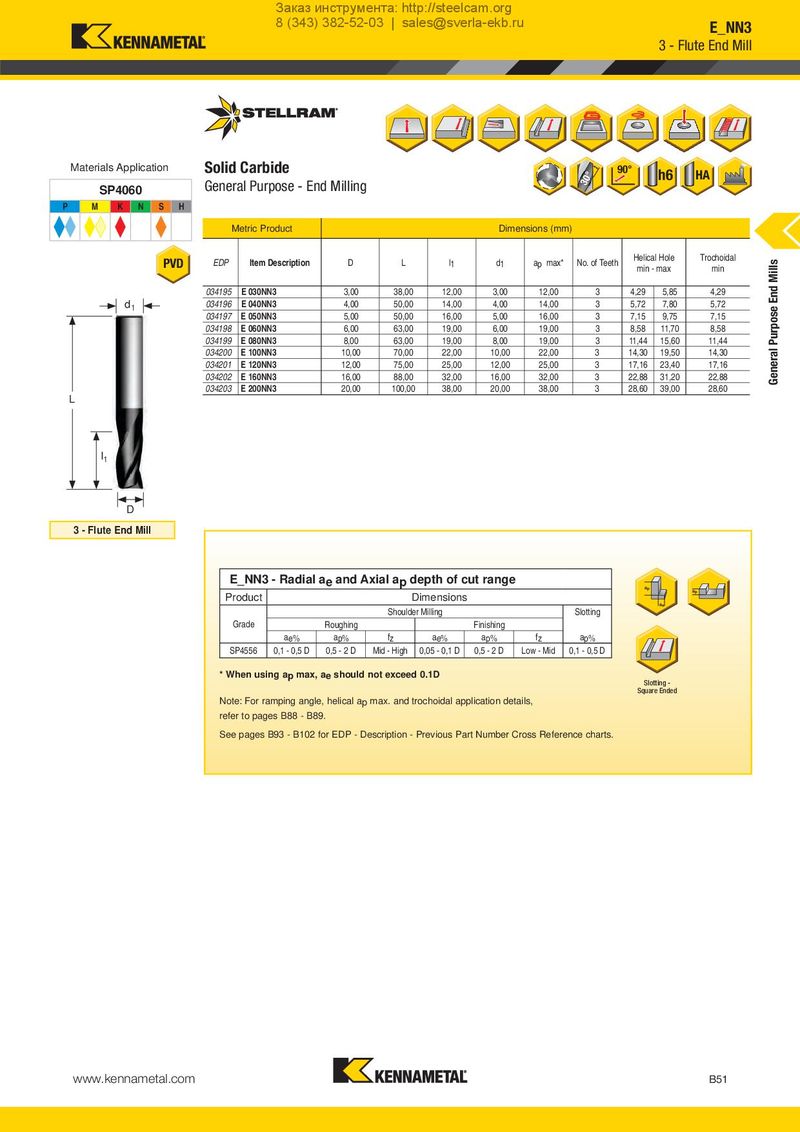

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru E_NN3 3 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 General Purpose - End Milling P M K N S H Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal General Purpose End Mills min - max min 034195 E 030NN3 3,00 38,00 12,00 3,00 12,00 3 4,29 5,85 4,29 d1 034196 E 040NN3 4,00 50,00 14,00 4,00 14,00 3 5,72 7,80 5,72 034197 E 050NN3 5,00 50,00 16,00 5,00 16,00 3 7,15 9,75 7,15 034198 E 060NN3 6,00 63,00 19,00 6,00 19,00 3 8,58 11,70 8,58 034199 E 080NN3 8,00 63,00 19,00 8,00 19,00 3 11,44 15,60 11,44 034200 E 100NN3 10,00 70,00 22,00 10,00 22,00 3 14,30 19,50 14,30 034201 E 120NN3 12,00 75,00 25,00 12,00 25,00 3 17,16 23,40 17,16 034202 E 160NN3 16,00 88,00 32,00 16,00 32,00 3 22,88 31,20 22,88 034203 E 200NN3 20,00 100,00 38,00 20,00 38,00 3 28,60 39,00 28,60 L I1 D 3 - Flute End Mill E_NN3 - Radial ae and Axial ap depth of cut range ap Product Dimensions ap ae Shoulder Milling Slotting Grade Roughing Finishing ae% ap% fz ae% ap% fz ap% SP4556 0,1 - 0,5 D 0,5 - 2 D Mid - High 0,05 - 0,1 D 0,5 - 2 D Low - Mid 0,1 - 0,5 D * When using ap max, ae should not exceed 0.1D Slotting - Square Ended Note: For ramping angle, helical ap max. and trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. www.kennametal.com B51
