Каталог Stellram твердосплавные цельные фрезы - страница 49

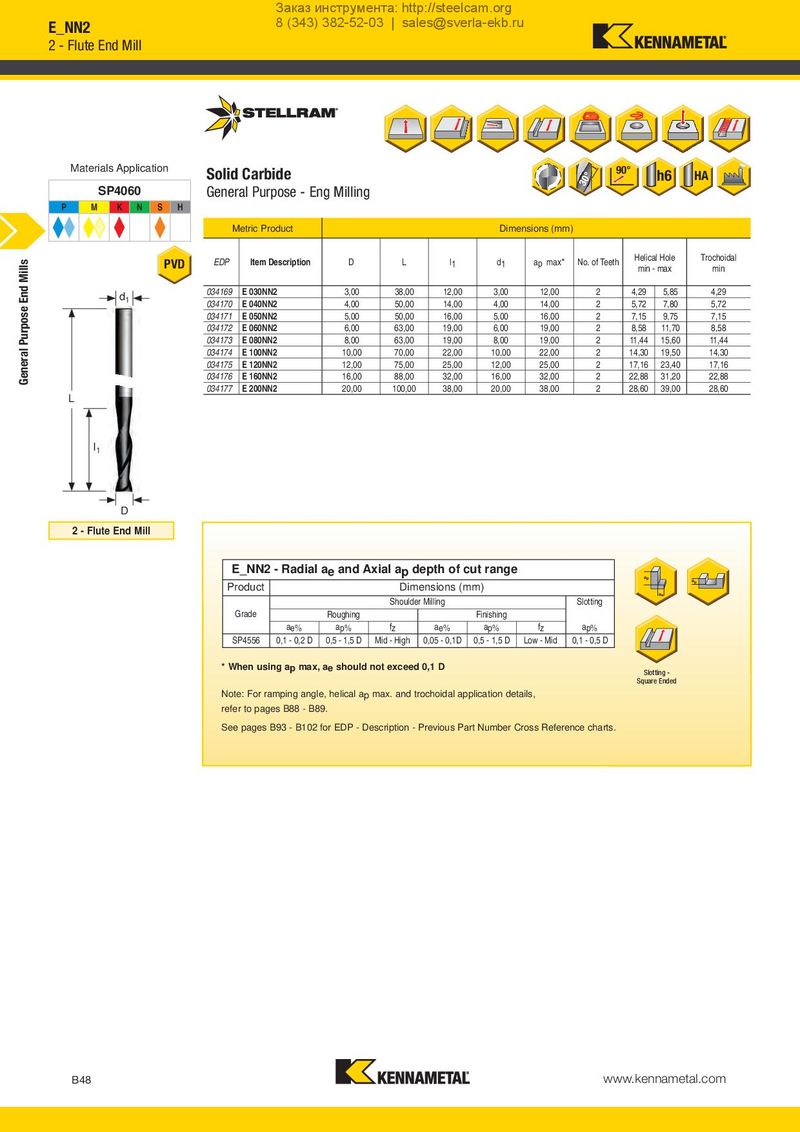

Заказ инструмента: http://steelcam.org E_NN2 8 (343) 382-52-03 | sales@sverla-ekb.ru 2 - Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 General Purpose - Eng Milling P M K N S H Metric Product Dimensions (mm) General Purpose End Mills PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min d1 034169 E 030NN2 3,00 38,00 12,00 3,00 12,00 2 4,29 5,85 4,29 034170 E 040NN2 4,00 50,00 14,00 4,00 14,00 2 5,72 7,80 5,72 034171 E 050NN2 5,00 50,00 16,00 5,00 16,00 2 7,15 9,75 7,15 034172 E 060NN2 6,00 63,00 19,00 6,00 19,00 2 8,58 11,70 8,58 034173 E 080NN2 8,00 63,00 19,00 8,00 19,00 2 11,44 15,60 11,44 034174 E 100NN2 10,00 70,00 22,00 10,00 22,00 2 14,30 19,50 14,30 034175 E 120NN2 12,00 75,00 25,00 12,00 25,00 2 17,16 23,40 17,16 034176 E 160NN2 16,00 88,00 32,00 16,00 32,00 2 22,88 31,20 22,88 L 034177 E 200NN2 20,00 100,00 38,00 20,00 38,00 2 28,60 39,00 28,60 I1 D 2 - Flute End Mill E_NN2 - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ap ae Shoulder Milling Slotting Grade Roughing Finishing ae% ap% fz ae% ap% fz ap% SP4556 0,1 - 0,2 D 0,5 - 1,5 D Mid - High 0,05 - 0,1D 0,5 - 1,5 D Low - Mid 0,1 - 0,5 D * When using ap max, ae should not exceed 0,1 D Slotting - Square Ended Note: For ramping angle, helical ap max. and trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B48 www.kennametal.com
