Каталог Stellram твердосплавные цельные фрезы - страница 33

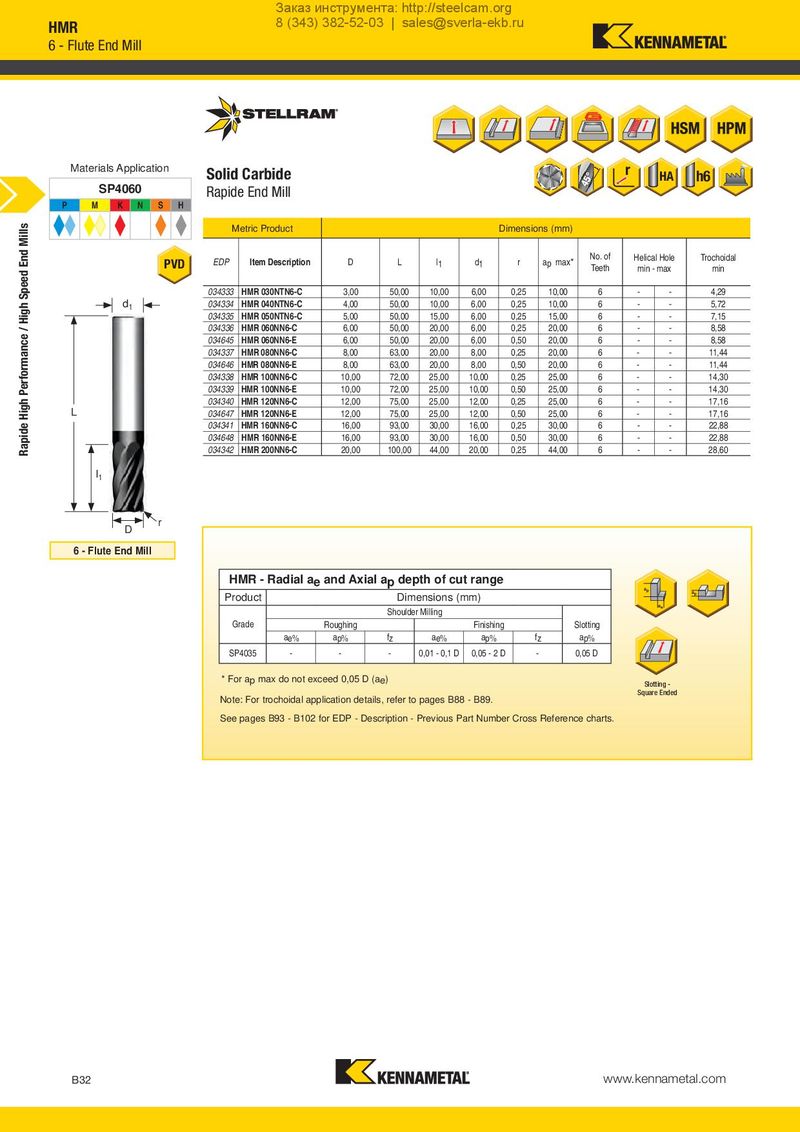

Заказ инструмента: http://steelcam.org HMR 8 (343) 382-52-03 | sales@sverla-ekb.ru 6 - Flute End Mill Materials Application Solid Carbide r HA h6 SP4060 Rapide End Mill P M K N S H Rapide High Performance / High Speed End Mills Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 r ap max* No. of Helical Hole Trochoidal Teeth min - max min 034333 HMR 030NTN6-C 3,00 50,00 10,00 6,00 0,25 10,00 6 - - 4,29 d1 034334 HMR 040NTN6-C 4,00 50,00 10,00 6,00 0,25 10,00 6 - - 5,72 034335 HMR 050NTN6-C 5,00 50,00 15,00 6,00 0,25 15,00 6 - - 7,15 034336 HMR 060NN6-C 6,00 50,00 20,00 6,00 0,25 20,00 6 - - 8,58 034645 HMR 060NN6-E 6,00 50,00 20,00 6,00 0,50 20,00 6 - - 8,58 034337 HMR 080NN6-C 8,00 63,00 20,00 8,00 0,25 20,00 6 - - 11,44 034646 HMR 080NN6-E 8,00 63,00 20,00 8,00 0,50 20,00 6 - - 11,44 034338 HMR 100NN6-C 10,00 72,00 25,00 10,00 0,25 25,00 6 - - 14,30 034339 HMR 100NN6-E 10,00 72,00 25,00 10,00 0,50 25,00 6 - - 14,30 034340 HMR 120NN6-C 12,00 75,00 25,00 12,00 0,25 25,00 6 - - 17,16 L 034647 HMR 120NN6-E 12,00 75,00 25,00 12,00 0,50 25,00 6 - - 17,16 034341 HMR 160NN6-C 16,00 93,00 30,00 16,00 0,25 30,00 6 - - 22,88 034648 HMR 160NN6-E 16,00 93,00 30,00 16,00 0,50 30,00 6 - - 22,88 034342 HMR 200NN6-C 20,00 100,00 44,00 20,00 0,25 44,00 6 - - 28,60 I1 D r 6 - Flute End Mill HMR - Radial ae and Axial ap depth of cut range ap Product Dimensions (mm) ap Shoulder Milling ae Grade Roughing Finishing Slotting ae% ap% fz ae% ap% fz ap% SP4035 - - - 0,01 - 0,1 D 0,05 - 2 D - 0,05 D * For ap max do not exceed 0,05 D (ae) Slotting - Note: For trochoidal application details, refer to pages B88 - B89. Square Ended See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B32 www.kennametal.com
