Каталог Stellram твердосплавные цельные фрезы - страница 27

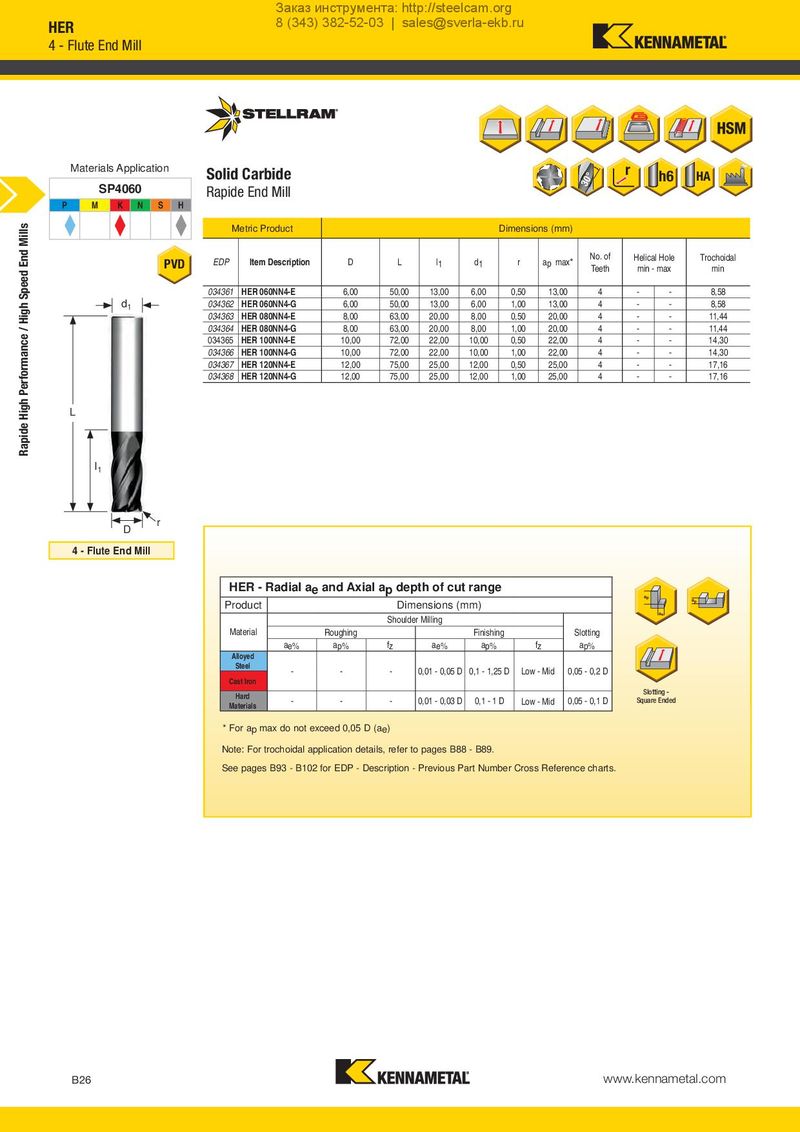

Заказ инструмента: http://steelcam.org HER 8 (343) 382-52-03 | sales@sverla-ekb.ru 4 - Flute End Mill Materials Application Solid Carbide r h6 HA SP4060 Rapide End Mill P M K N S H Rapide High Performance / High Speed End Mills Metric Product Dimensions (mm) PVD EDP Item Description D L l1 d1 r ap max* No. of Helical Hole Trochoidal Teeth min - max min 034361 HER 060NN4-E 6,00 50,00 13,00 6,00 0,50 13,00 4 - - 8,58 d1 034362 HER 060NN4-G 6,00 50,00 13,00 6,00 1,00 13,00 4 - - 8,58 034363 HER 080NN4-E 8,00 63,00 20,00 8,00 0,50 20,00 4 - - 11,44 034364 HER 080NN4-G 8,00 63,00 20,00 8,00 1,00 20,00 4 - - 11,44 034365 HER 100NN4-E 10,00 72,00 22,00 10,00 0,50 22,00 4 - - 14,30 034366 HER 100NN4-G 10,00 72,00 22,00 10,00 1,00 22,00 4 - - 14,30 034367 HER 120NN4-E 12,00 75,00 25,00 12,00 0,50 25,00 4 - - 17,16 034368 HER 120NN4-G 12,00 75,00 25,00 12,00 1,00 25,00 4 - - 17,16 L I1 D r 4 - Flute End Mill HER - Radial ae and Axial ap depth of cut range ap ap Product Dimensions (mm) Shoulder Milling ae Material Roughing Finishing Slotting ae% ap% fz ae% ap% fz ap% Alloyed Steel - - - 0,01 - 0,05 D 0,1 - 1,25 D Low - Mid 0,05 - 0,2 D Cast Iron Hard Slotting - Materials - - - 0,01 - 0,03 D 0,1 - 1 D Low - Mid 0,05 - 0,1 D Square Ended * For ap max do not exceed 0,05 D (ae) Note: For trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. B26 www.kennametal.com
