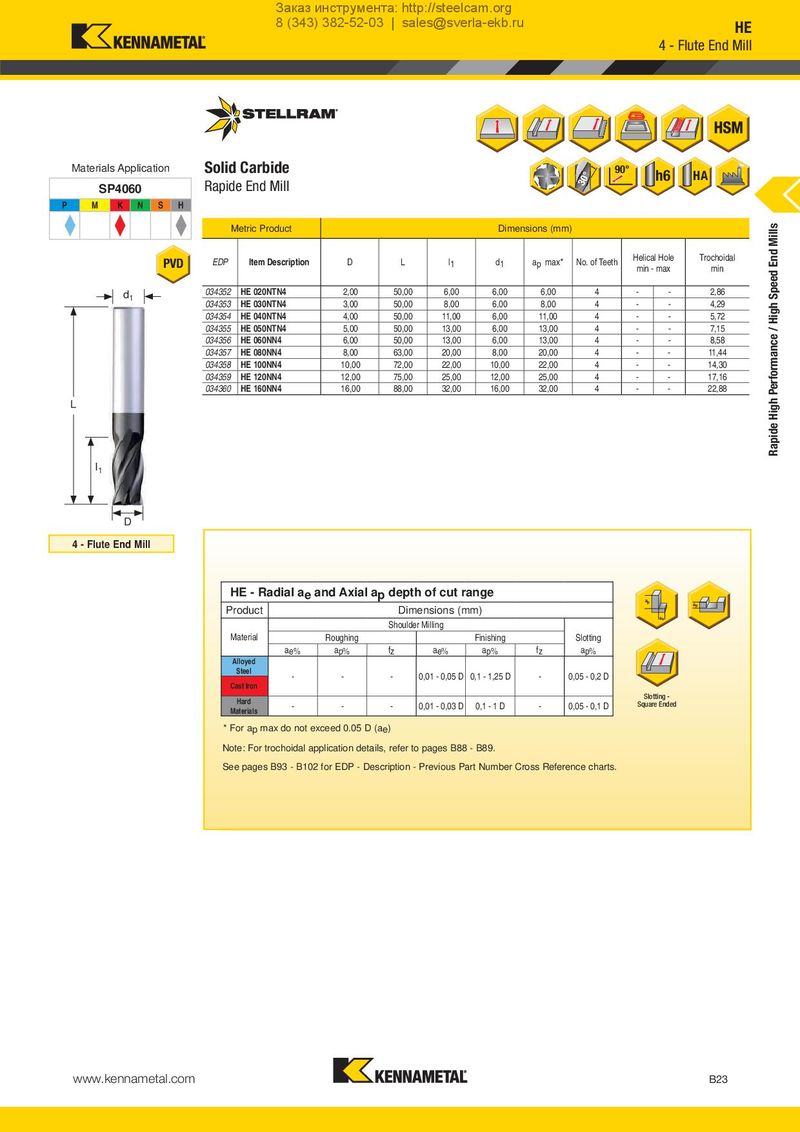

Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru HE 4- Flute End Mill Materials Application Solid Carbide 90° h6 HA SP4060 Rapide End Mill P M K N S H Metric Product Dimensions (mm) Rapide High Performance / High Speed End Mills PVD EDP Item Description D L l1 d1 ap max* No. of Teeth Helical Hole Trochoidal min - max min d1 034352 HE 020NTN4 2,00 50,00 6,00 6,00 6,00 4 - - 2,86 034353 HE 030NTN4 3,00 50,00 8,00 6,00 8,00 4 - - 4,29 034354 HE 040NTN4 4,00 50,00 11,00 6,00 11,00 4 - - 5,72 034355 HE 050NTN4 5,00 50,00 13,00 6,00 13,00 4 - - 7,15 034356 HE 060NN4 6,00 50,00 13,00 6,00 13,00 4 - - 8,58 034357 HE 080NN4 8,00 63,00 20,00 8,00 20,00 4 - - 11,44 034358 HE 100NN4 10,00 72,00 22,00 10,00 22,00 4 - - 14,30 034359 HE 120NN4 12,00 75,00 25,00 12,00 25,00 4 - - 17,16 034360 HE 160NN4 16,00 88,00 32,00 16,00 32,00 4 - - 22,88 L I1 D 4 - Flute End Mill HE - Radial ae and Axial ap depth of cut range ap ap Product Dimensions (mm) ae Shoulder Milling Material Roughing Finishing Slotting ae% ap% fz ae% ap% fz ap% Alloyed Steel - - - 0,01 - 0,05 D 0,1 - 1,25 D - 0,05 - 0,2 D Cast Iron Hard Slotting - Materials - - - 0,01 - 0,03 D 0,1 - 1 D - 0,05 - 0,1 D Square Ended * For ap max do not exceed 0.05 D (ae) Note: For trochoidal application details, refer to pages B88 - B89. See pages B93 - B102 for EDP - Description - Previous Part Number Cross Reference charts. www.kennametal.com B23
